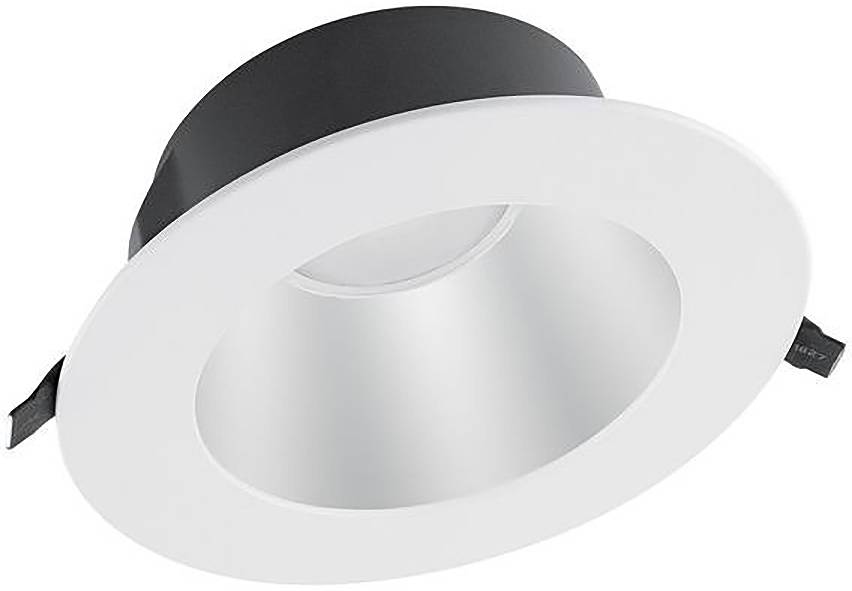

LEDVANCE 4058075459854 4058075459854 LED recessed light 21 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LEDV LED RECESSED CEILING SPOT LIGHT DL UGR19 DN195 PFM 21W/840 DALI WT
- Power= 21 W
- Colour temperature= 4000 K
Technical specifications
- Product type
LED recessed light
- Operating voltage
220 V
- Bulb type
LED (monochrome)
21 W
4000 K
- Radiation angle
41°
- Protection class
II
IP54
- Factory colour
White
- Material
Aluminium
- Dim
(Ø x H) 220 mm x 82 mm
n.rel.
- Width
220 mm
- Height
82 mm
- Length
220 mm
- (Ø)
220 mm
- Colour temperature (min.)
4000 K
Yes
- Recess diameter
195 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3793930 LEDVANCE 4058075459854 4058075459854 LED recessed light 21 W
User & Safety Instructions
User & Safety Instructions 3793930 LEDVANCE 4058075459854 4058075459854 LED recessed light 21 W
Description
Low-glare down lights, suitable for workstations and DALI-2 IoT technology. Product features: IoT-enabled light with DALI 2 technology. Housing material: Aluminium with high-gloss reflector. Protection class IP54 (room-side) / IP20 (back-side). Connection box with plug-in terminal for tool-free connection. Through wiring possible Product benefits: Suitable lamp for VIVARES and other DALI-2 light management systems. Good glare (UGR ? 19) and Cut-Off-angle up to 30° for a comfortable interior lighting. Quick and easy installation thanks to a 5-pin, tool-free terminal connection box. Low-flicker light. Suitable for use in dusty and humid environments thanks to high degree of protection. Applications: Suitable for office applications, especially screen workstations. Direct replacement for lamps with compact fluorescent lamps. Gears/corridors. Bathrooms, kitchens and covered outdoor areas. General lighting. Technical equipment: External ballast included.
