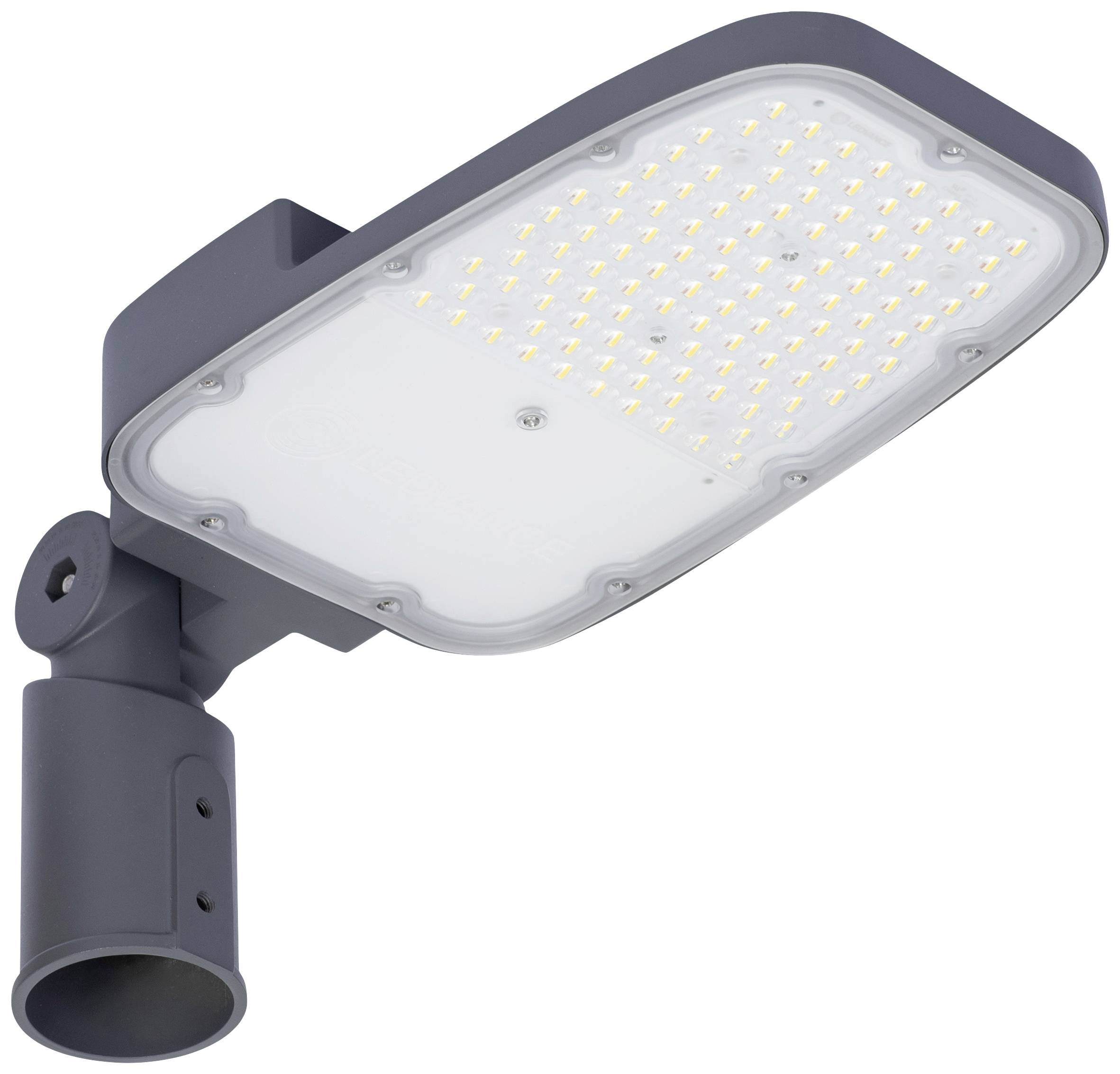

LEDVANCE Area Medium 181983.LE.00.01 LED lamp post LED (monochrome) w/o 65 W Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LEDVANCE street lamp area Medium
- Functional and minimalist design
- Long LED life means low maintenance and operating costs
Technical specifications
- Cable length 500 mm
- Connection type cable, 3-pin
- Product type
LED lamp post
- Type
Planar
- Bulb type
LED (monochrome)
w/o
65 W
3000 K
- Colour
Warm white
- Total luminous flux
8450 lm
- Light features
Swivelling
- Swivel range (max.)
30°
- Protection class
I
IP66
IK08
- Factory colour
Grey
- Material
Aluminium
Polycarbonate (PC)
- Weight
1790 g
- Dim
(Ø x H) 60 mm x 73 mm
n.rel.
- Colour rendering index
70
- Colour temperature range
3000 K
- Width
193 mm
- Height
73 mm
- Length
513 mm
- Depth
73 mm
- (Ø)
60 mm
- Light bulb included
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2924039 LEDVANCE Area Medium 181983.LE.00.01 LED lamp post LED (monochrome) w/o 65 W Grey
User & Safety Instructions
User & Safety Instructions 2924039 LEDVANCE Area Medium 181983.LE.00.01 LED lamp post LED (monochrome) w/o 65 W Grey
Description
Ideal for a wide range of applications in road and surface lighting.
This text is machine translated.
This text is machine translated.
Features
- Light distribution for streets with a similar street width as light point height
- Master adapter included in delivery, suitable for masts with 48...60 mm pin dimension
- Adjustable mast adapter, suitable for mast attachment and mast attachment assembly
- +/- 30° inclination adjustment without opening the casing
- High light yield: Up to 135 lm/W.
- Ambient temperature range during operation: -30...50 °C.
- High surge protection up to 10 kV (L/N-PE)
- Outdoor use − (IP66)
- Roads of classes M, C and P gem EN 13201, parking lots or for surface lighting
- Built-in LED driver
