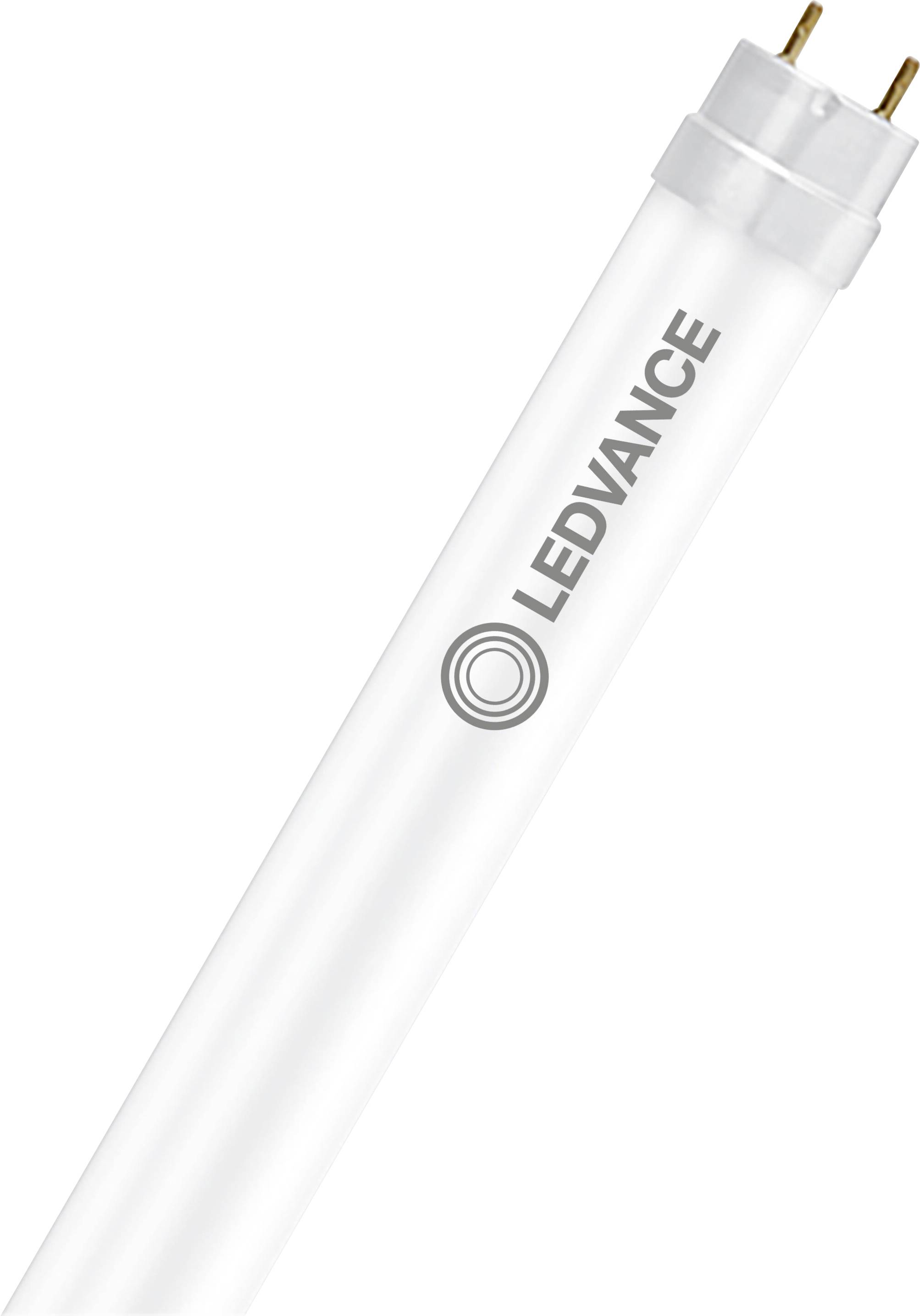

LEDVANCE LED tube EEC: A (A - G) G13 Tube shape T8 CB 10 W Neutral white (Ø x L) 26.70 mm x 1212.00 mm 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
LED tube G13 10 W Neutral white EEC: A (A - G) T8 CB
- Power= 10 W
- Total luminous flux= 2100 lm
- Colour temperature= 4000 K
- Neutral white
Technical specifications
- Reflected beam angle 190°
- Suitable for EVG: No.
- Suitable for magnetic ballast: Yes
- IFTTT support available: Yes
- Nominal voltage: 220 V
- Rated current: 47 mA
- Product type
LED tube
Tube shape
G13
10 W
- Power range
10 W - 19.9 W
2100 lm
- Version
matte
- Colour
Neutral white
- Operated via
CB
- Total luminous flux
2100 lm
4000 K
- Colour temperature range
4000 - 4000 K
100000 h
- Circuits
200000
- Power factor
0.90
- Length
1212.00 mm
- (Ø)
26.70 mm
- Content
1 pc(s)
A (A - G)
- Energy consumption
10 kWh/1000h
- Dim
(Ø x L) 26.70 mm x 1212.00 mm
- No. of bulbs
1
- Colour rendering
840
- Colour consistency (SDCM)
6
- Colour rendering index
80 Ra
89 Ra
- Bulb shape
T8
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Material
Glass
IP20
- Max. temperature
50 °C
- Min. temperature
-20 °C
- Type
T8
- Factory colour
White
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3499559 LEDVANCE LED tube EEC: A (A - G) G13 Tube shape T8 CB 10 W Neutral white (Ø x L) 26.70 mm x 1212.00 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3499559 LEDVANCE LED tube EEC: A (A - G) G13 Tube shape T8 CB 10 W Neutral white (Ø x L) 26.70 mm x 1212.00 mm 1 pc(s)
Description
Powerful LED tubes for electromagnetic ballasts (conventional ballast/WG) and mains voltage, EEK A. Product features: LED replacement for conventional T8 fluorescent lamps with G13 sockets in conventional ballast lights or on mains voltage. Extremely high efficiency of 210 lm/W. Flicker arm according to EU 2019/2020 (SVM ?0.4 / PstLM?1). ENEC 10 VDE mark. Durability: Up to 100,000 h. Protection class IP20 Mercury-free and RoHS compliant. Product advantages: Highest possible energy savings thanks to energy efficiency class A. No hanging thanks to glass technology. Very high switching strength. Simple, fast and safe replacement of lamps without rewiring. Energy savings of up to 72% (as compared to T8 fluorescent lamp). Full brightness without warm-up phase, therefore Ideal suitable in combination with sensors. Also suitable for low temperature operation. Applications: General lighting in ambient temperatures from -20 - +50°C. Lighting in industrial manufacturing. Traffic zones and corridors. Supermarkets and department stores. Industry. Technical features: Suitable for use with low-loss and conventional ballasts. Legal notice: When replacing a T8 fluorescent lamp, total energy efficiency and light distribution depend on the design of the installation. Safety notes: Not suitable for use with electronic ballast. For outdoor use, a suitable wet room light according to the data sheet and installation guide is possible. Not suitable for emergency lighting. Disconnect power before installation.
This text is machine translated.
This text is machine translated.
Features
- Powerful LED tubes for electromagnetic ballasts (conventional ballast/WG) and mains voltage, EEK A
- LED replacement for conventional T8 fluorescent lamps with G13 socket in conventional ballast lights or with mains voltage
- Nominal power 10 W. Nominal voltage 220 - 240 V
- Colour temperature 4000 K
- Luminous flux: 2100 lm
- Reflected beam angle: 190°
- Length (including round lamps): 1212.00 mm
- Width 26.70 mm
- L90/B10 life at 25 °C: 100000 h / UKCA / VDE / ENEC / EAC.
