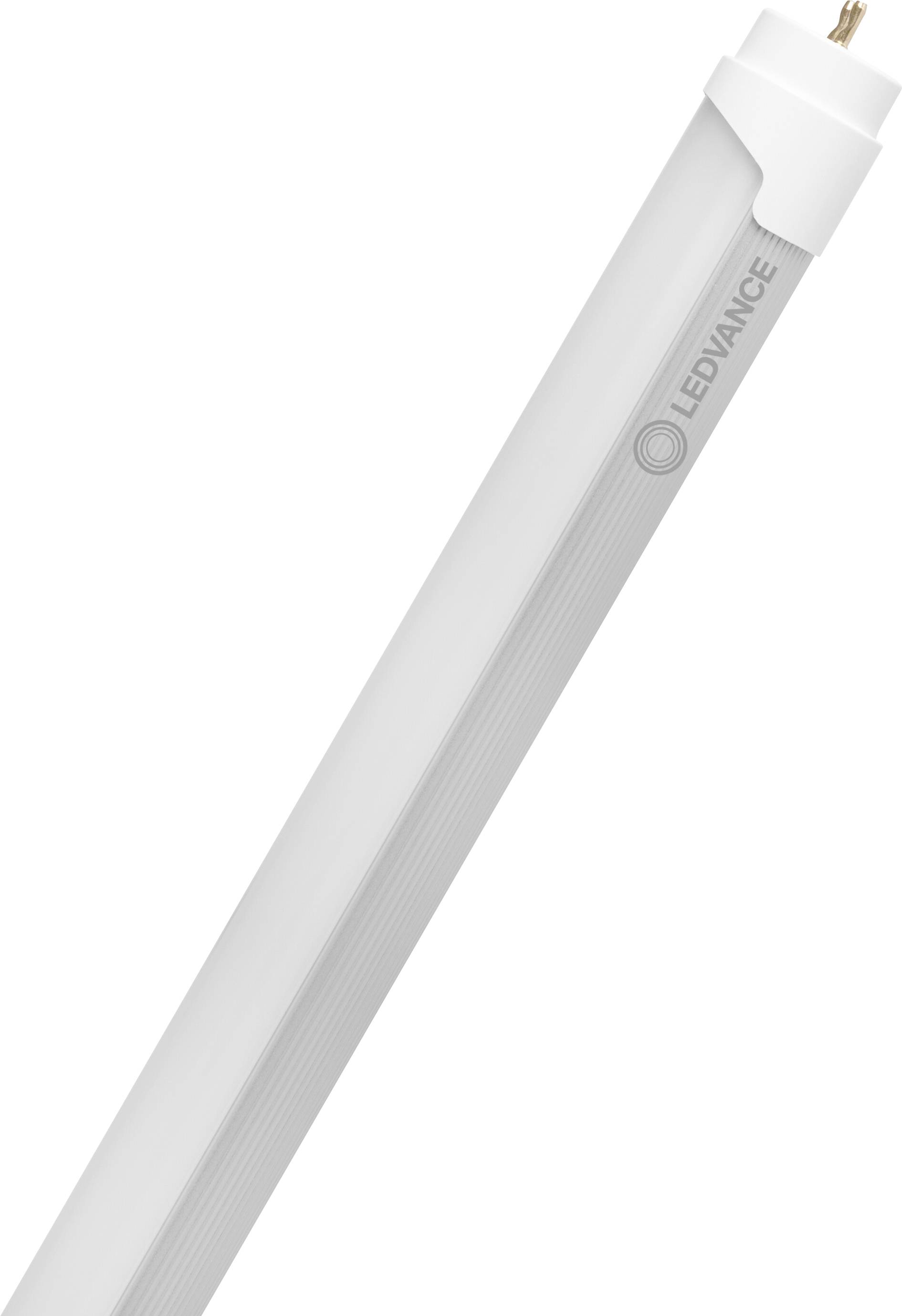

LEDVANCE LED tube EEC: B (A - G) G13 Tube shape T8 CB 14 W Neutral white (Ø x L) 28.00 mm x 1213.00 mm 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
LED tube G13 14 W Neutral white EEC: B (A - G) T8 CB
- Power= 14 W
- Total luminous flux= 2600 lm
- Colour temperature= 4000 K
- Neutral white
Technical specifications
- Reflected beam angle 120°
- Suitable for EVG: No.
- Suitable for magnetic ballast: Yes
- IFTTT support available: Yes
- Lamp shape: Tubes, two-sided bases
- Nominal voltage: 220 V
- Nominal current: 66 mA
- Product type
LED tube
Tube shape
G13
14 W
- Power range
10 W - 19.9 W
2600 lm
- Version
matte
- Colour
Neutral white
- Operated via
CB
- Total luminous flux
2600 lm
4000 K
- Colour temperature range
4000 - 4000 K
75000 h
- Circuits
200000
- Power factor
0.90
- Operating voltage
220 V
- Length
1213.00 mm
- (Ø)
28.00 mm
- Content
1 pc(s)
B (A - G)
- Energy consumption
14 kWh/1000h
- Dim
(Ø x L) 28.00 mm x 1213.00 mm
- No. of bulbs
1
- Colour rendering
840
- Colour consistency (SDCM)
5
- Colour rendering index
80 Ra
89 Ra
- Bulb shape
T8
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
IP20
- Max. temperature
80 °C
- Min. temperature
-20 °C
- Type
T8
- Factory colour
White
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3499561 LEDVANCE LED tube EEC: B (A - G) G13 Tube shape T8 CB 14 W Neutral white (Ø x L) 28.00 mm x 1213.00 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3499561 LEDVANCE LED tube EEC: B (A - G) G13 Tube shape T8 CB 14 W Neutral white (Ø x L) 28.00 mm x 1213.00 mm 1 pc(s)
Description
Powerful LED tubes for electromagnetic ballasts (conventional ballast/WG) and mains voltage, and for applications with high ambient temperatures. Product features: LED replacement for conventional T8 fluorescent lamps with G13 socket in conventional ballast lights or at mains voltage. Very large ambient temperature range -20 - +80°C. Flicker arm according to EU 2019/2020 (SVM ?0.4 / PstLM?1). Life at 25 °C Ambient temperature: Up to 75,000 h. Life at 80 °C Ambient temperature: Up to 17,500 h. Protection class: IP20. ENEC 10 VDE mark. Mercury-free and RoHS compliant. Product benefits: Suitable for high ambient temperatures of up to +80°C. Very high switching strength. High luminous flux for demanding lighting tasks. Simple, fast and safe replacement of lamps without rewiring. Energy savings of up to 62% (as compared to T8 fluorescent lamp). Full brightness without warm-up phase, therefore Ideal suitable in combination with sensors. Also suitable for low temperature operation. Applications: General lighting in ambient temperatures from -20 - +80°C. Lighting in industrial manufacturing. Industry. Technical equipment: Replacement starter for LED tubes. Legal notice: When replacing a T8 fluorescent lamp, total energy efficiency and light distribution depend on the design of the installation. Safety notes: It is recommended to check before installation whether the lamp and in particular the sockets are in good condition and suitable to carry the weight of the lamp. Only suitable for temperatures up to 80°C inside the lamp. Not suitable for use with electronic ballast. For outdoor use, a suitable wet room light according to the data sheet and installation guide is possible. Not suitable for emergency lighting. Disconnect power before installation.
This text is machine translated.
This text is machine translated.
Features
- Powerful LED tubes for electromagnetic ballasts (conventional ballast/WG) and mains voltage, and for applications with high ambient temperatures
- LED replacement for conventional T8 fluorescent lamps with G13 socket in conventional ballast lights or with mains voltage
- Nominal power 14 W. Nominal voltage 220 - 240 V
- Colour temperature 4000 K
- Luminous flux: 2600 lm
- Reflected beam angle: 120°
- Length (including round lamps): 1213.00 mm
- Width 28.00 mm
- L90/B10 life at 25 °C: 75000 h / UKCA / VDE / ENEC / EAC.
