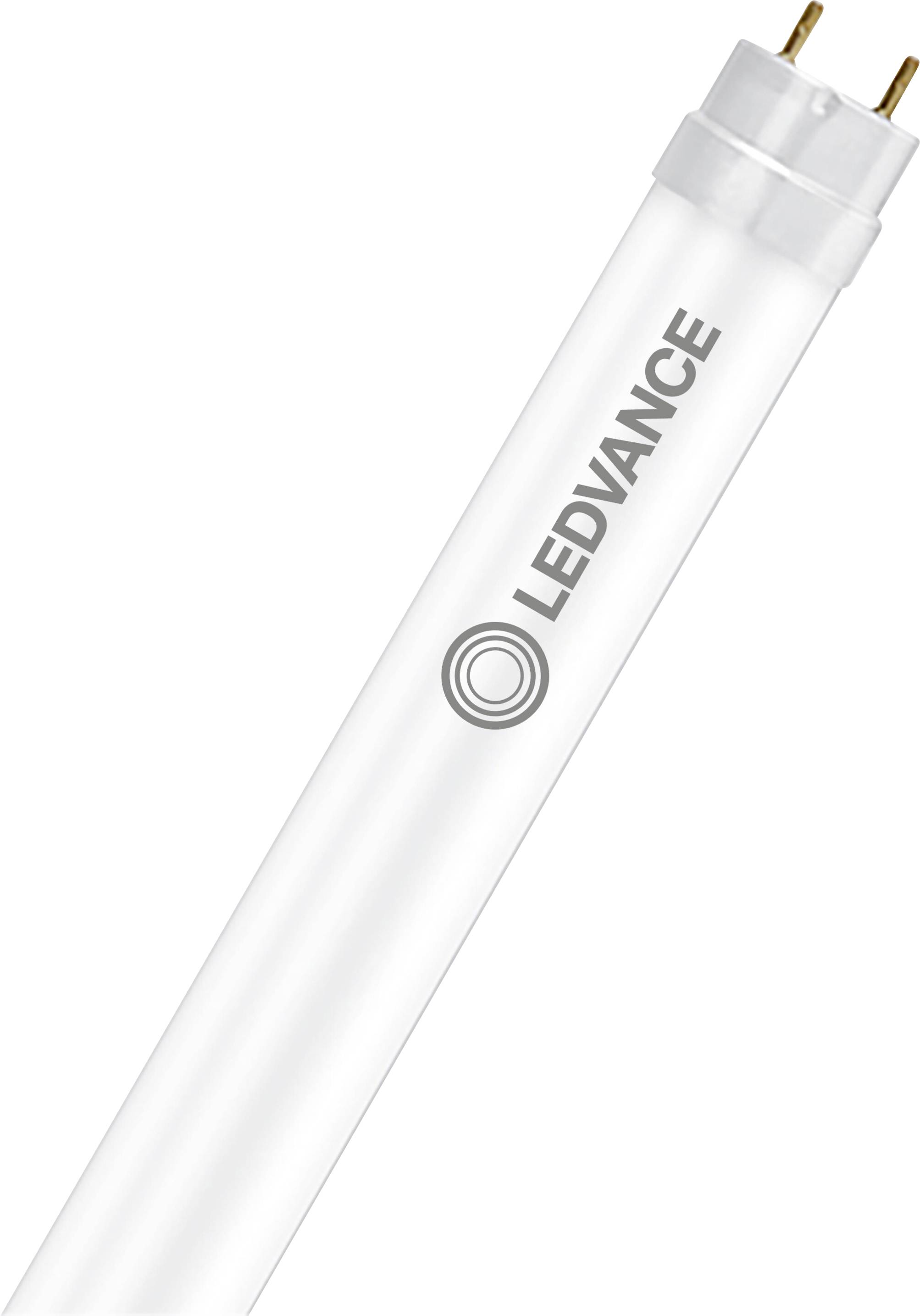

LEDVANCE LED tube EEC: B (A - G) G13 Tube shape T8 CB 22.1 W Neutral white (Ø x L) 26.70 mm x 1513.00 mm 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
LED tube G13 22.1 W Neutral white EEC: B (A - G) T8 CB
- Power= 22.1 W
- Total luminous flux= 4100 lm
- Colour temperature= 5000 K
- Neutral white
Technical specifications
- Reflected beam angle 190°
- Suitable for EVG: No.
- Suitable for magnetic ballast: Yes
- IFTTT support available: Yes
- Nominal voltage: 220 V
- Nominal current: 100 mA
- Product type
LED tube
Tube shape
G13
22.1 W
- Power range
20 W - 39.9 W
4100 lm
- Version
matte
- Colour
Neutral white
- Operated via
CB
- Total luminous flux
4100 lm
5000 K
- Colour temperature range
5000 - 5000 K
75000 h
- Circuits
200000
- Power factor
0.90
- Operating voltage
220 V
- Length
1513.00 mm
- (Ø)
26.70 mm
- Content
1 pc(s)
B (A - G)
- Energy consumption
23 kWh/1000h
- Dim
(Ø x L) 26.70 mm x 1513.00 mm
- No. of bulbs
1
- Colour rendering
850
- Colour consistency (SDCM)
5
- Colour rendering index
80 Ra
89 Ra
- Colour temperature (max.)
5000 K
- Colour temperature (min.)
5000 K
- Material
Glass
IP20
- Max. temperature
50 °C
- Min. temperature
-20 °C
- Type
T8
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3499491 LEDVANCE LED tube EEC: B (A - G) G13 Tube shape T8 CB 22.1 W Neutral white (Ø x L) 26.70 mm x 1513.00 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3499491 LEDVANCE LED tube EEC: B (A - G) G13 Tube shape T8 CB 22.1 W Neutral white (Ø x L) 26.70 mm x 1513.00 mm 1 pc(s)
Description
Powerful LED tubes with extra Hohem light current for electromagnetic ballasts (conventional/VVG) and mains voltage, splinter protection. Product features: LED replacement for conventional T8 fluorescent lamps with G13 socket in conventional ballast lights or at mains voltage. Flicker arm according to EU 2019/2020 (SVM ?0.4 / PstLM?1). Glass bulb with splitter protection for applications such as in the food industry. ENEC 10 VDE mark. For especially homogeneous illumination. Durability: Up to 75,000 h. Protection class IP20 Mercury-free and RoHS compliant. Product advantages: No hanging thanks to glass tube. Split protection thanks to special PET coating. Support in the implementation of HACCP concepts from production to product presentation. Very high switching strength. High luminous flux for demanding lighting tasks. Simple, fast and safe replacement of lamps without rewiring. Energy savings of up to 62% (as compared to T8 fluorescent lamp). Full brightness without warm-up phase, therefore Ideal suitable in combination with sensors. Also suitable for low temperature operation. Applications: General lighting in ambient temperatures from -20 - +50°C. Lighting in industrial manufacturing. Traffic zones and corridors. Supermarkets and department stores. Industry. Technical features: Suitable for use with low-loss and conventional ballasts. Legal notice: When replacing a T8 fluorescent lamp, total energy efficiency and light distribution depend on the design of the installation. Safety notes: Not suitable for use with electronic ballast. For outdoor use, a suitable wet room light according to the data sheet and installation guide is possible. Not suitable for emergency lighting. Disconnect power before installation.
This text is machine translated.
This text is machine translated.
Features
- Powerful LED tubes with extra Hohem light current for electromagnetic ballasts (conventional/VVG) and mains voltage, splinter protection
- LED replacement for conventional T8 fluorescent lamps with G13 socket in conventional ballast lights or with mains voltage
- Nominal power 22.1 W. Nominal voltage 220 - 240 V
- Colour temperature 5000 K
- Luminous flux: 4100 lm
- Reflected beam angle: 190°
- Length (including round lamps): 1513.00 mm
- Width 26.70 mm
- L90/B10 life at 25 °C: 75000 h / UKCA / VDE / ENEC / EAC
