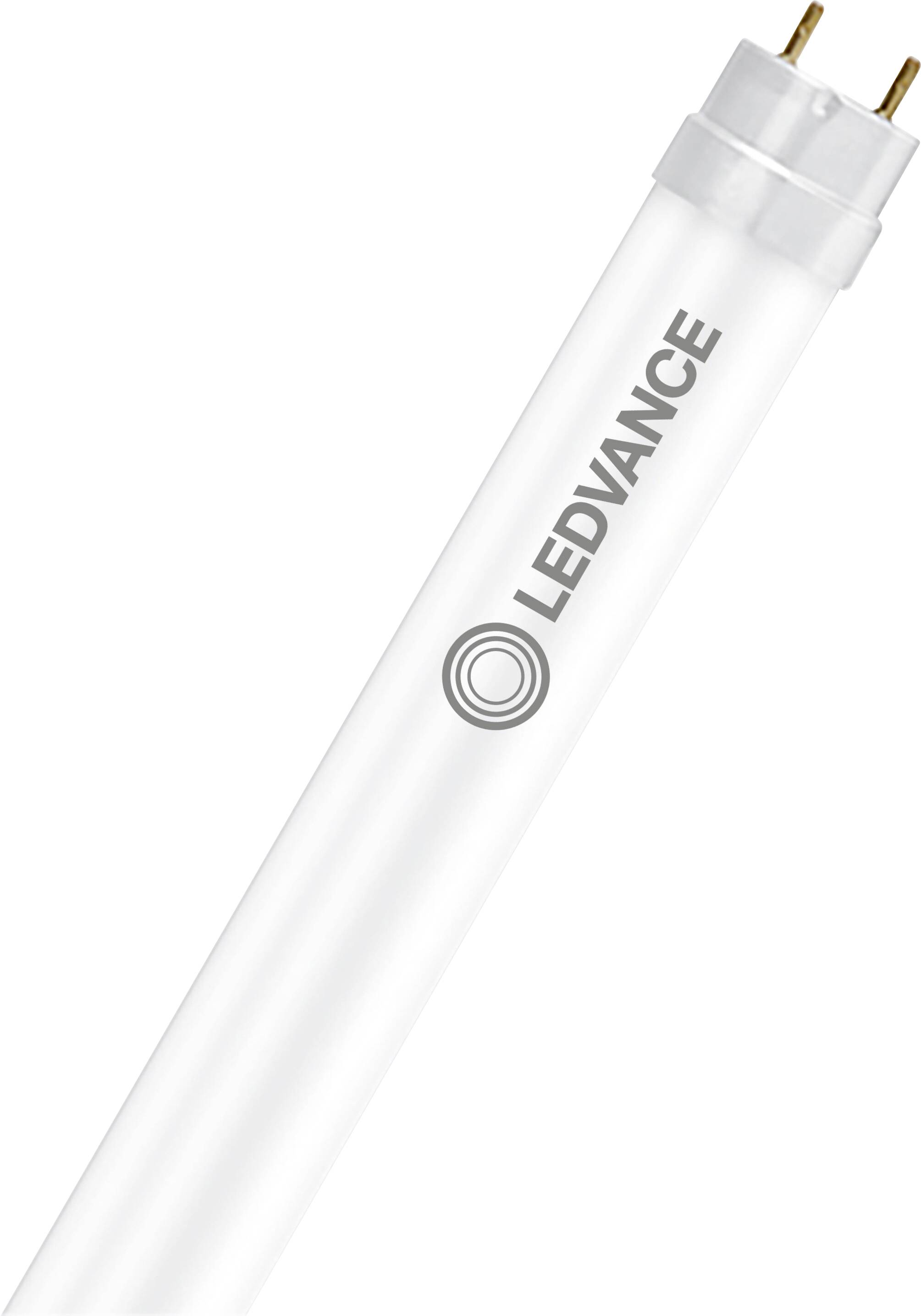

LEDVANCE LED tube EEC: C (A - G) G13 Tube shape T8 CB 13.1 W Neutral white (Ø x L) 26.70 mm x 1212.00 mm incl. motion de
EAN:
Part number:
Item no:
Highlights & Details
LED tube G13 13.1 W Neutral white EEC: C (A - G) T8 CB
- Power= 13.1 W
- Total luminous flux= 2100 lm
- Colour temperature= 4000 K
- Neutral white
Technical specifications
- Reflected beam angle 190°
- Suitable for EVG: No.
- Suitable for magnetic ballast: Yes
- IFTTT support available: Yes
- Lamp shape: Tubes, two-sided bases
- Nominal voltage: 220 V
- Rated current: 60 mA
- Product type
LED tube
Tube shape
G13
13.1 W
- Power range
10 W - 19.9 W
2100 lm
- Version
matte
- Colour
Neutral white
- Operated via
CB
- Total luminous flux
2100 lm
4000 K
- Colour temperature range
4000 - 4000 K
Yes
60000 h
- Circuits
200000
- Power factor
0.90
- Length
1212.00 mm
- (Ø)
26.70 mm
- Content
1 pc(s)
C (A - G)
- Energy consumption
14 kWh/1000h
- Dim
(Ø x L) 26.70 mm x 1212.00 mm
- No. of bulbs
1
- Colour rendering
840
- Colour consistency (SDCM)
5
- Colour rendering index
80 Ra
89 Ra
- Light features
Incl. motion detector
- Bulb shape
T8
- Light bulb features
incl. motion detector
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Material
Glass
IP20
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Type
T8
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3499540 LEDVANCE LED tube EEC: C (A - G) G13 Tube shape T8 CB 13.1 W Neutral white (Ø x L) 26.70 mm x 1212.00 mm incl. motion de
User & Safety Instructions
User & Safety Instructions 3499540 LEDVANCE LED tube EEC: C (A - G) G13 Tube shape T8 CB 13.1 W Neutral white (Ø x L) 26.70 mm x 1212.00 mm incl. motion de
Description
LED tubes with integrated microwave sensor for electromagnetic ballasts (conventional/VVG) and mains voltage, splinter protection. Product features: LED replacement for conventional T8 fluorescent lamps with G13 socket in conventional ballast lights or at mains voltage. Built-in motion detector with microwave technology. Automatic dimming to 20% light current after 5 minutes without motion detection. Automatic light switch-off 7 minutes after the last movement detection. Microwave sensor with 5.8 GHz. Motion detection of up to 5 m. Flicker arm according to EU 2019/2020 (SVM ?0.4 / PstLM?1). Protection class: IP20 Mercury-free and RoHS compliant. Product benefits: Energy savings of up to 67% compared to conventional fluorescent lamps. Suitable for closed lamps thanks to microwave technology. Very high switching strength. Simple, fast and safe replacement of a fluorescent lamp without rewiring of the conventional ballast. No hanging thanks to glass tube. Split protection thanks to special PET coating. Support in the implementation of HACCP concepts from production to product presentation. Also suitable for low temperature operation. Applications: General lighting in ambient temperatures from -20 - +50°C. Corridors, stairways and parking garages. Warehouses. Hallways and hallways. Logistics areas, traffic buildings and corridors. Technical features: Suitable for use with low-loss and conventional ballasts. Legal notice: When replacing a T8 fluorescent lamp, total energy efficiency and light distribution depend on the design of the installation. Safety notes: Not suitable for use with electronic ballast. For outdoor use, a suitable wet room light according to the data sheet and installation guide is possible. Recommended maximum installation height: 5 m. Not suitable for emergency lighting. Disconnect power before installation.
This text is machine translated.
This text is machine translated.
Features
- LED tubes with integrated microwave sensor for electromagnetic ballasts (conventional/VVG) and mains voltage, splinter protection
- LED replacement for conventional T8 fluorescent lamps with G13 socket in conventional ballast lights or with mains voltage
- Nominal power 13.1 W. Nominal voltage 220 - 240 V
- Colour temperature 4000 K
- Luminous flux: 2100 lm
- Reflected beam angle: 190°
- Length (including round lamps): 1212.00 mm
- Width 26.70 mm
- L90/B10 life at 25 °C: 60000 h / EAC / UKCA
