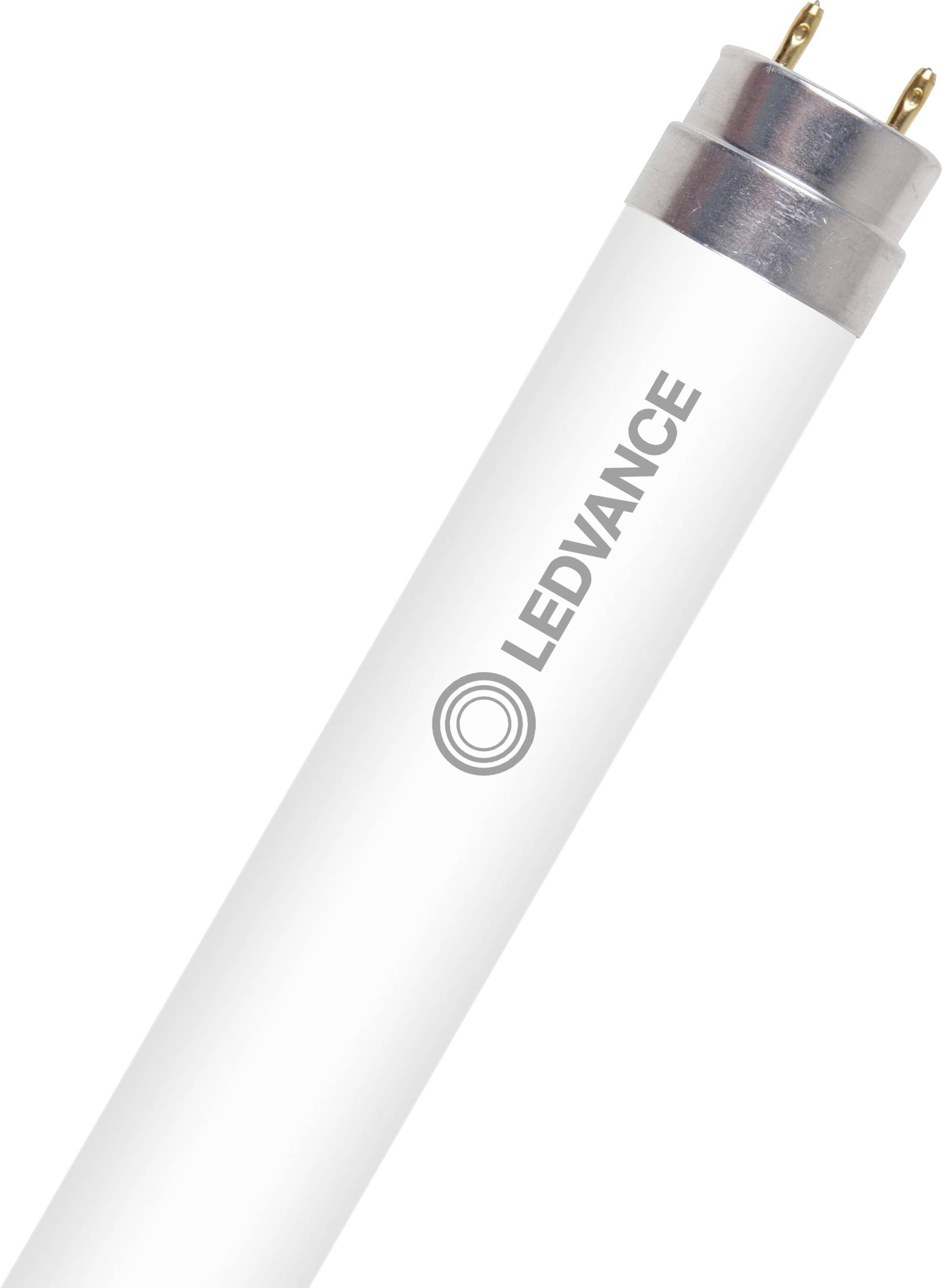

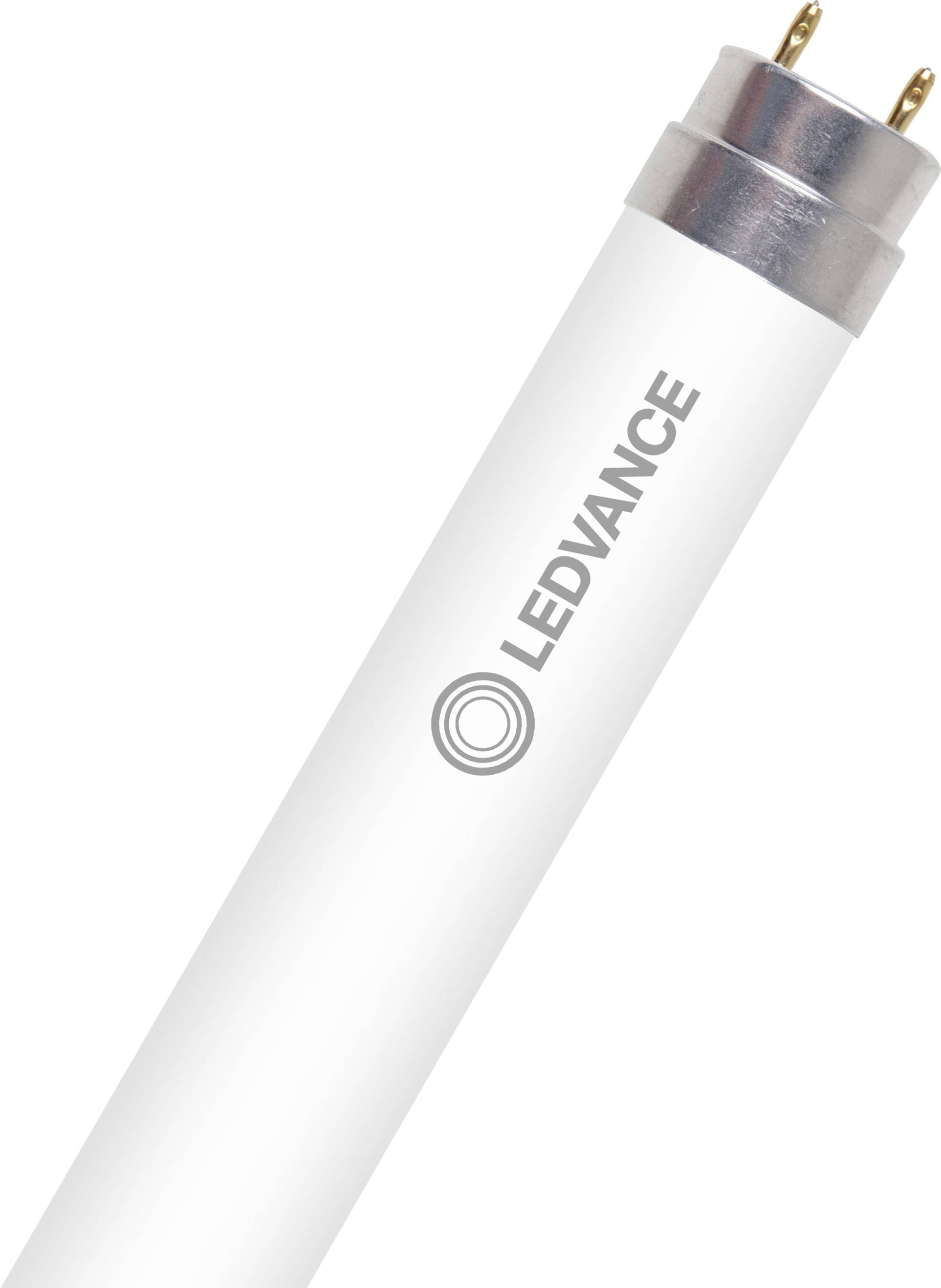

LEDVANCE LED tube EEC: D (A - G) G13 Tube shape T8 7.3 W Daylight white (Ø x L) 27.00 mm x 603.00 mm dimmable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
LED tube G13 7.3 W Daylight white EEC: D (A - G) T8
- Power= 7.3 W
- Total luminous flux= 1100 lm
- Colour temperature= 6500 K
- Daylight white
Technical specifications
- Reflected beam angle 190°
- Suitable for EVG: No.
- Suitable for magnetic ballast: No.
- IFTTT support available: Yes
- Lamp shape: Tubes, two-sided bases
- Nominal voltage: 21 V
- Nominal current 350 mA
- Product type
LED tube
Tube shape
G13
7.3 W
- Power range
5 W - 7.4 W
1100 lm
- Version
matte
- Colour
Daylight white
- Total luminous flux
1100 lm
6500 K
- Colour temperature range
6500 K (max)
Yes
75000 h
- Circuits
200000
- Power factor
0.90
- Operating voltage
21 V
- Length
603.00 mm
- (Ø)
27.00 mm
- Content
1 pc(s)
D (A - G)
- Energy consumption
8 kWh/1000h
- Dim
(Ø x L) 27.00 mm x 603.00 mm
- Colour rendering
865
- Colour consistency (SDCM)
5
- Colour rendering index
80 Ra
89 Ra
- Light features
Dimmable
- Bulb shape
T8
- Light bulb features
dimmable
- Colour temperature (max.)
6500 K
- Material
Glass
IP20
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Type
T8
- Factory colour
White
White
G13
White
DC
FALSE
FALSE
80-89
FALSE
27.00 mm
FALSE
150 lm/W
Tube, double-ended
603.00 mm
FALSE
21-21 V
IP20
Daylight white >5300 K
Frosted
75000 h
350-350 mA
6500-6500 K
8.00 kWh
TRUE
7.3-7.3 W
1100-1100 lm
SDCM5
RG0
FALSE
FALSE
FALSE
FALSE
FALSE
T8
FALSE
200000
190.00-190.00°
1100 lm
FALSE
FALSE
FALSE
FALSE
D
FALSE
FALSE
0.90
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3499584 LEDVANCE LED tube EEC: D (A - G) G13 Tube shape T8 7.3 W Daylight white (Ø x L) 27.00 mm x 603.00 mm dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3499584 LEDVANCE LED tube EEC: D (A - G) G13 Tube shape T8 7.3 W Daylight white (Ø x L) 27.00 mm x 603.00 mm dimmable 1 pc(s)
Description
LED tubes T8 EXTERNAL for LED driver EXTERNAL. Product Features: Designed for use with LED DRIVER LED TUBE EXTERNAL DALI. Glass bulb with splinter protection. Quality dimming from 1 - 100 %. High switching strength. Suitable in ambient temperatures from -20 - +50°C. Product benefits: Easy conversion to dimmable LED lighting. Easy application, no checking of the compatibility of the ballast needed. Suitable for emergency lighting with single battery. Split protection thanks to special PET coating. No hanging thanks to glass tube. Application areas: Industrial lighting (e.g. production plants, logistics centers, warehouses). Linear lighting solutions for offices, educational facilities, storerooms and retail trade. Shops, supermarkets. Safety instructions: For outdoor use, suitable wet room lights are available in accordance with data sheet and installation instructions. The operating temperature range of the LED tube is limited. If you are in doubt about the suitability of the application, please measure the maximum TC temperature on the product before installation. Disconnect power before installation. All electrical connections must be made by qualified personnel only.
This text is machine translated.
This text is machine translated.
Features
- LED tubes T8 EXTERNAL for LED driver EXTERNAL
- Designed to operate on LED DRIVER LED TUBE EXTERNAL DALI
- Nominal power 7.3 W.
- Nominal voltage 21 V
- Colour temperature 6500 K
- Luminous flux: 1100 lm
- Reflected beam angle: 190°
- Length (including round lamps): 603.00 mm
- Width 27.00 mm
- L90/B10 life at 25 °C: 75000 h / UKCA
