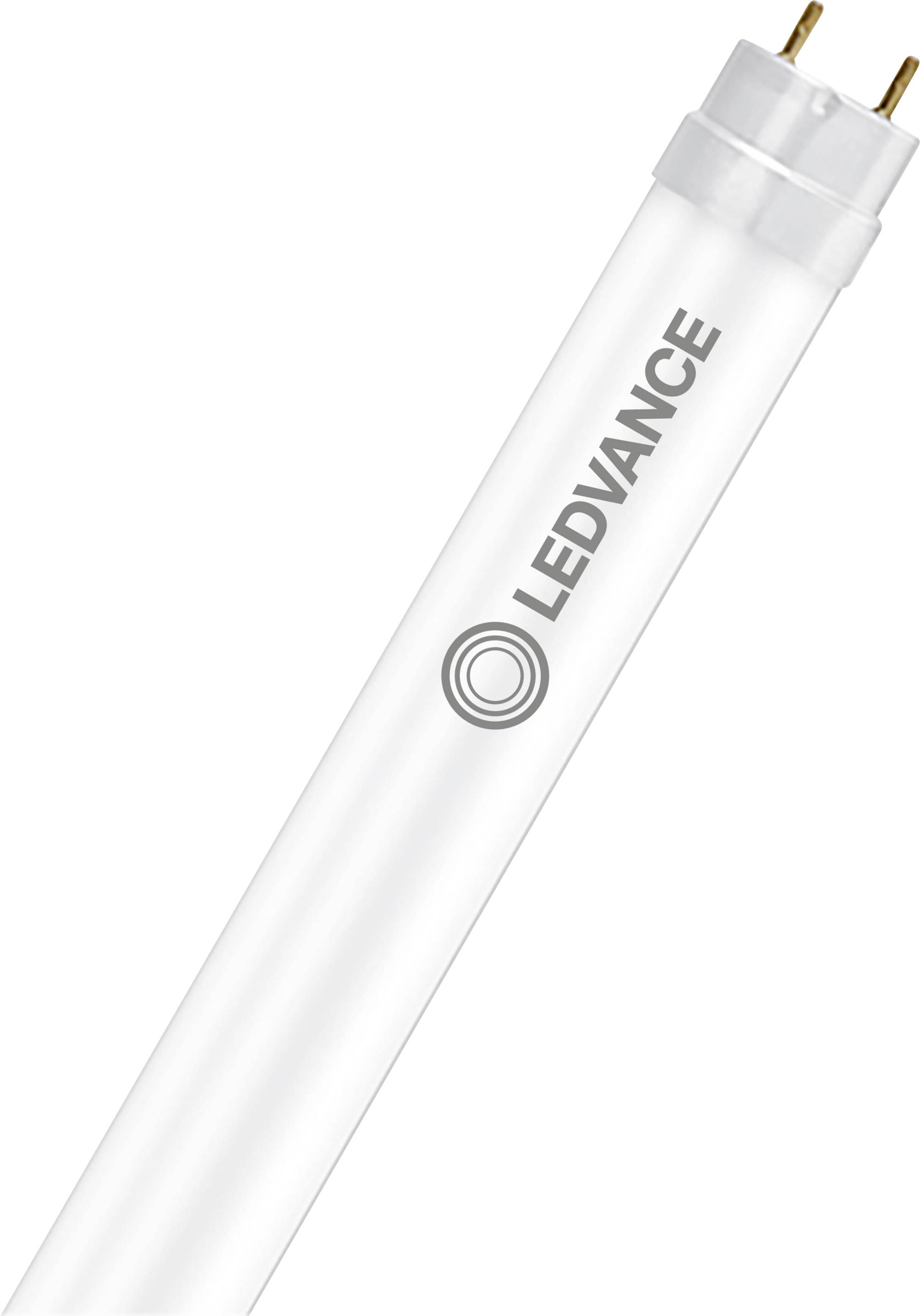

LEDVANCE LED tube EEC: D (A - G) G13 Tube shape T8 CB 20 W Warm white (Ø x L) 26.70 mm x 1513.00 mm incl. shard protecti
EAN:
Part number:
Item no:
Highlights & Details
LED tube G13 20 W Warm white EEC: D (A - G) T8 CB
- Power= 20 W
- Total luminous flux= 2790 lm
- Colour temperature= 3000 K
- Warm white
Technical specifications
- Reflected beam angle 190°
- Suitable for EVG: No.
- Suitable for magnetic ballast: Yes
- IFTTT support available: Yes
- Nominal voltage: 220 V
- Nominal current 90 mA
- Product type
LED tube
Tube shape
G13
20 W
- Power range
20 W - 39.9 W
2790 lm
- Version
matte
- Colour
Warm white
- Operated via
CB
- Total luminous flux
2790 lm
3000 K
- Colour temperature range
3000 - 3000 K
60000 h
- Circuits
200000
- Power factor
0.90
- Length
1513.00 mm
- (Ø)
26.70 mm
- Content
1 pc(s)
D (A - G)
- Energy consumption
20 kWh/1000h
- Dim
(Ø x L) 26.70 mm x 1513.00 mm
- No. of bulbs
1
- Colour rendering
830
- Colour consistency (SDCM)
5
- Colour rendering index
80 Ra
89 Ra
- Bulb shape
T8
- Light bulb features
incl. shard protection
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Material
Glass
IP20
- Max. temperature
50 °C
- Min. temperature
-20 °C
- Type
T8
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3499486 LEDVANCE LED tube EEC: D (A - G) G13 Tube shape T8 CB 20 W Warm white (Ø x L) 26.70 mm x 1513.00 mm incl. shard protecti
User & Safety Instructions
User & Safety Instructions 3499486 LEDVANCE LED tube EEC: D (A - G) G13 Tube shape T8 CB 20 W Warm white (Ø x L) 26.70 mm x 1513.00 mm incl. shard protecti
Description
LED tubes for electromagnetic ballasts (conventional ballast) and mains voltage, splinter protection. Product features: LED replacement for conventional T8 fluorescent lamps with G13 socket in conventional ballast lights or at mains voltage. Flicker arm according to EU 2019/2020 (SVM ?0.4 / PstLM?1). Single and tandem operation on conventional ballast (0.6 m version). Glass bulb with splitter protection for applications such as in the food industry. Mercury-free and RoHS compliant. Homogeneous illumination. Protection class: IP20 Product advantages: No hanging thanks to glass tube. Simple, fast and safe replacement of lamps without rewiring. Energy savings of up to 66% (as compared to T8 fluorescent lamp). Full brightness without warm-up phase, therefore Ideal suitable in combination with sensors. Very high switching strength. Also suitable for low temperature operation. Applications: General lighting in ambient temperatures from -20 - +50°C. Lighting in industrial manufacturing. Traffic zones and corridors. Supermarkets and department stores. Industry. Technical features: Suitable for use with low-loss and conventional ballasts. Legal notice: When replacing a T8 fluorescent lamp, total energy efficiency and light distribution depend on the design of the installation. Safety notes: Not suitable for use with electronic ballast. For outdoor use, a suitable wet room light according to the data sheet and installation guide is possible. Not suitable for emergency lighting. Disconnect power before installation.
This text is machine translated.
This text is machine translated.
Features
- LED tubes for electromagnetic ballasts (conventional ballast) and mains voltage, splinter protection
- LED replacement for conventional T8 fluorescent lamps with G13 socket in conventional ballast lights or with mains voltage
- Nominal power 20 W. Nominal voltage 220 - 240 V
- Colour temperature 3000 K
- Luminous flux: 2790 lm
- Reflected beam angle: 190°
- Length (including round lamps): 1513.00 mm
- Width 26.70 mm
- L90/B10 life at 25 °C: 60000 h / EAC / UKCA
