Name: LEDVANCE LED tube EEC: D (A - G) G5 Tube shape T5 36 W Warm white (Ø x L) 19.00 mm x 1463.00 mm incl. shard protection 1
Brand: LEDVANCE
SKU: 3499455

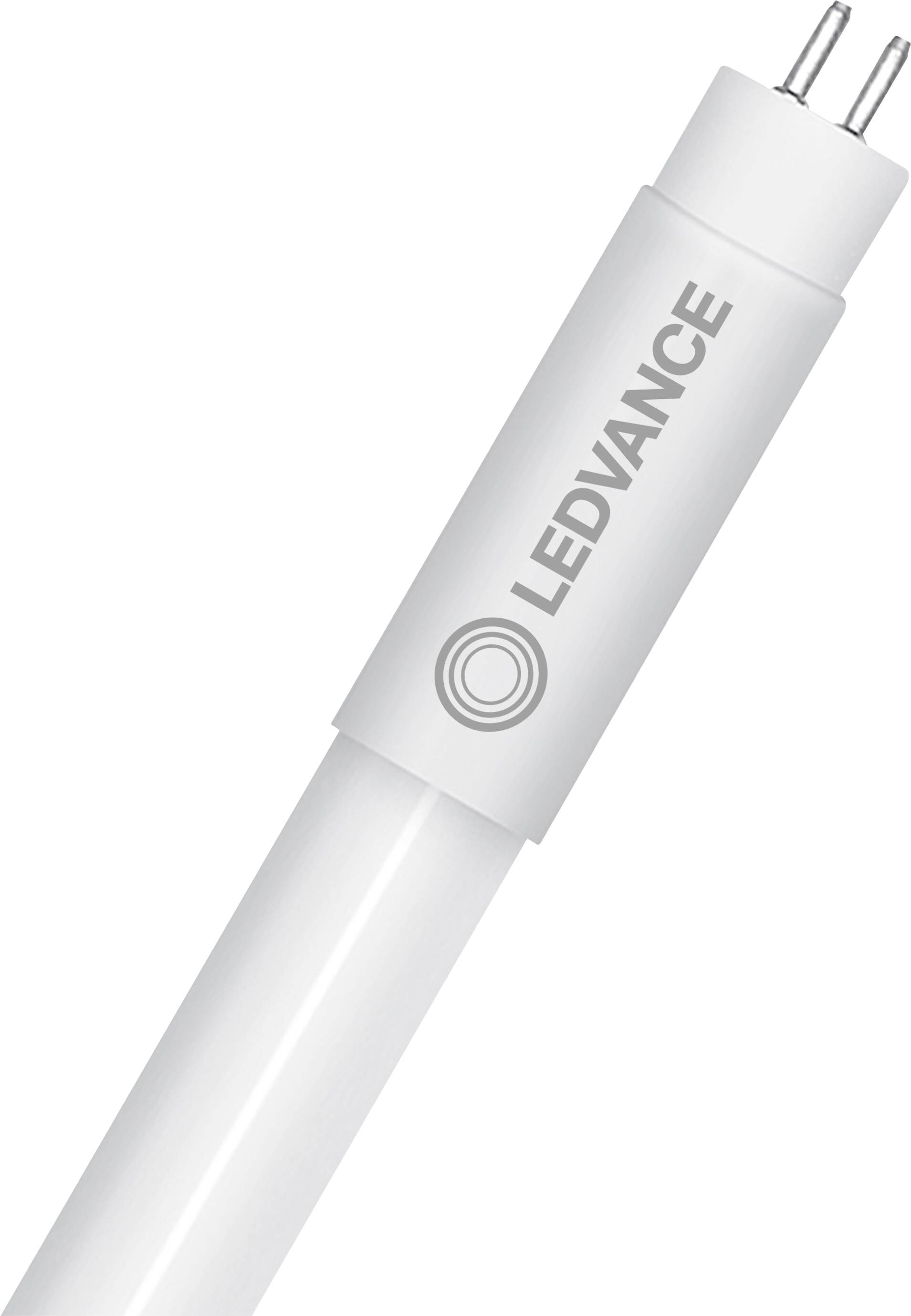

'LEDVANCE' branded LED tube light, showing the pins for socket connection on one end.

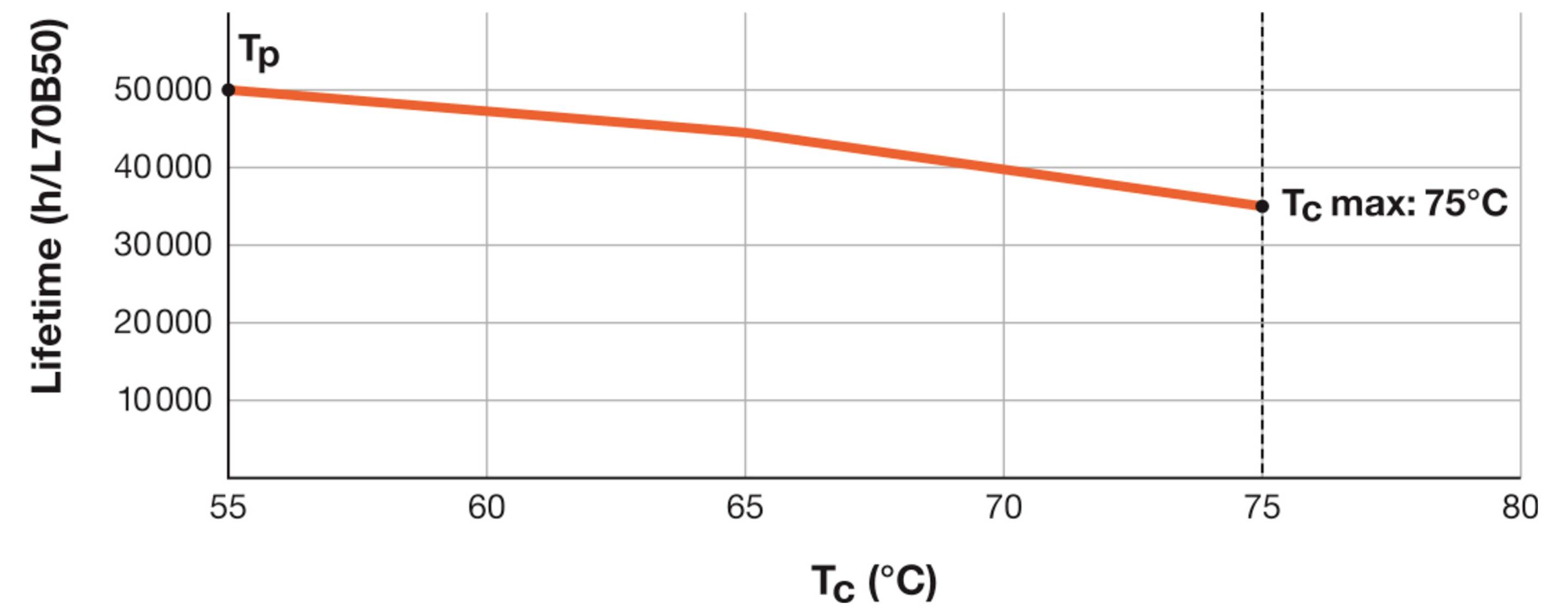

Graph showing a descending line from 50,000 h at 55°C to 40,000 h at 75°C. Labeled 'Tp'. Notation at 75°C: 'Tc max: 75°C'.

1/2

Product data sheet

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

LED tube G5 36 W Warm white EEC: D (A - G) T5

Power= 36 W
Total luminous flux= 5050 lm
Colour temperature= 3000 K
Warm white

Technical specifications

Reflected beam angle 190°
Suitable for EVG: No.
Suitable for magnetic ballast: No.
IFTTT support available: Yes
Lamp shape: Tubes, two-sided bases
Nominal voltage: 220 V
Nominal current 160 mA

Product type: LED tube

: Tube shape

: G5

: 36 W

Power range: 20 W - 39.9 W

: 5050 lm

Version: matte

Colour: Warm white

Total luminous flux: 5050 lm

: 3000 K

Colour temperature range: 3000 - 3000 K

: 50000 h

Circuits: 200000

Power factor: 0.90

Length: 1463.00 mm

(Ø): 19.00 mm

Content: 1 pc(s)

: D (A - G)

Energy consumption: 36 kWh/1000h

Dim: (Ø x L) 19.00 mm x 1463.00 mm

No. of bulbs: 1

Colour rendering: 830

Colour consistency (SDCM): 5

Colour rendering index: 80 Ra
89 Ra

Bulb shape: T5

Light bulb features: incl. shard protection

Colour temperature (max.): 3000 K

Colour temperature (min.): 3000 K

Material: Glass

: IP20

Max. temperature: 45 °C

Min. temperature: -20 °C

Type: T5

Factory colour: White

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3499455 LEDVANCE LED tube EEC: D (A - G) G5 Tube shape T5 36 W Warm white (Ø x L) 19.00 mm x 1463.00 mm incl. shard protection 1

User & Safety Instructions

User & Safety Instructions 3499455 LEDVANCE LED tube EEC: D (A - G) G5 Tube shape T5 36 W Warm white (Ø x L) 19.00 mm x 1463.00 mm incl. shard protection 1

Description

LED mains voltage tubes. Product features: LED replacement for fluorescent lamps with G5 sockets on mains voltage. Glass bulb with splitter protection for applications such as in the food industry. High color consistency: ? 5 SDCM (threshold unit). Lifecycle: Up to 50,000 hrs. Flicker-poor according to EU 2019/2020 (SVM ?0.4 / PstLM?1). Protection class: IP20 Product advantages: No hanging thanks to glass technology. Split protection thanks to special PET coating. High luminous flux for demanding lighting tasks. Applications: General lighting in ambient temperatures from -20 - +45 °C. Offices, public facilities. Supermarkets and department stores. Industry. Safety notes: Not suitable for use with electronic ballast. For outdoor use, a suitable wet room light according to the data sheet and installation guide is possible. The operating temperature range of the LED tube is limited. If you are in doubt about the suitability of the application, please measure the maximum TC temperature on the product before installation. The responsibility for technical and safety-related consequences after lamp bypass wiring passes to the contractor. All electrical connections must be made by qualified personnel only. Disconnect power before installation. Lamp is not suitable for emergency lighting operation.

This text is machine translated.
