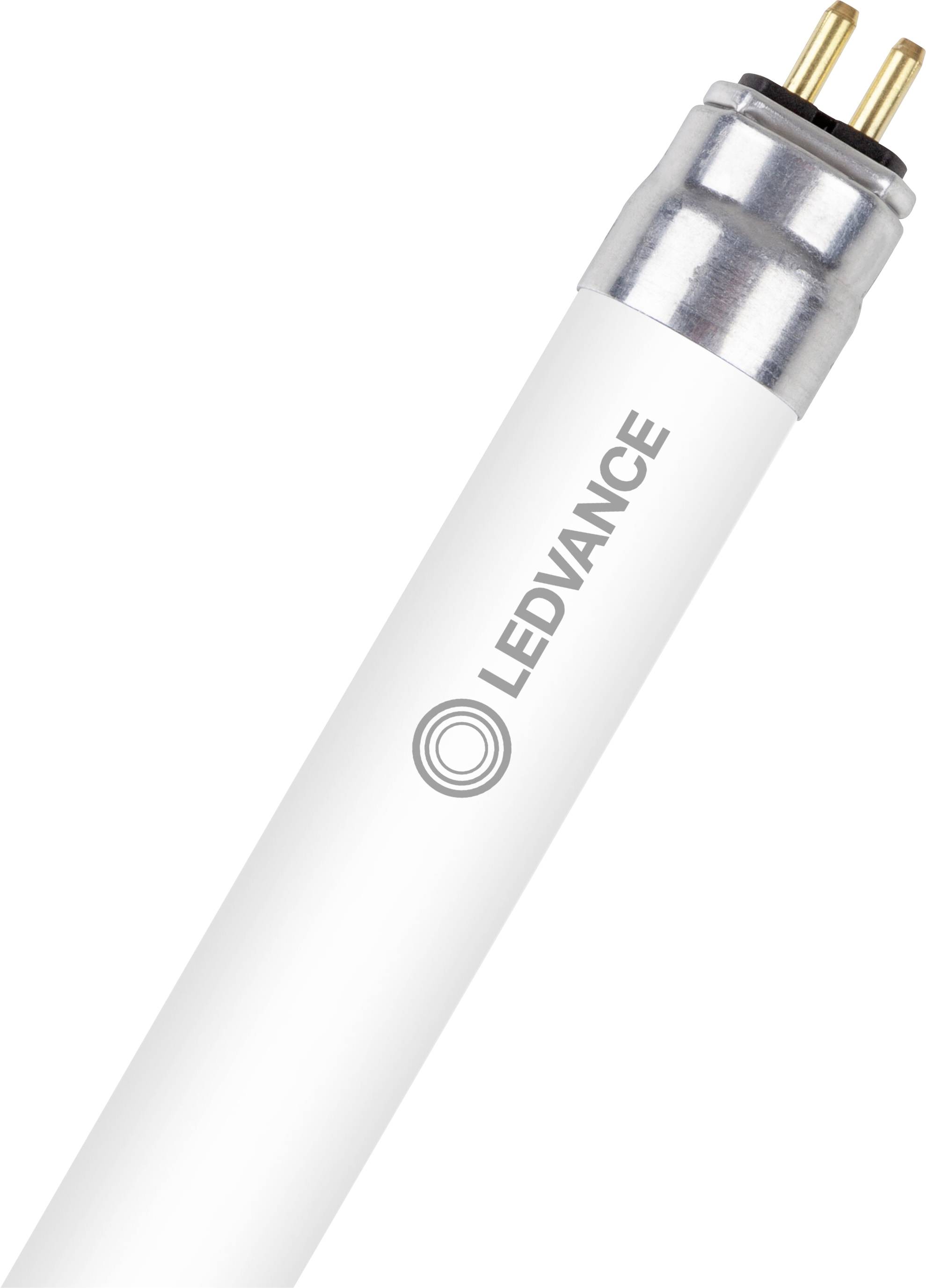

LEDVANCE LED tube EEC: E (A - G) G5 Tube shape T5 7.3 W Warm white (Ø x L) 17.00 mm x 563.00 mm incl. shard protection 1
EAN:
Part number:
Item no:
Highlights & Details
LED tube G5 7.3 W Warm white EEC: E (A - G) T5
- Power= 7.3 W
- Total luminous flux= 1000 lm
- Colour temperature= 3000 K
- Warm white
Technical specifications
- Reflected beam angle 180°
- Suitable for EVG: No.
- Suitable for magnetic ballast: No.
- IFTTT support available: Yes
- Lamp shape: Tubes, two-sided bases
- Nominal voltage: 21 V
- Nominal current 350 mA
- Product type
LED tube
Tube shape
G5
7.3 W
- Power range
5 W - 7.4 W
1000 lm
- Version
matte
- Colour
Warm white
- Total luminous flux
1000 lm
3000 K
- Colour temperature range
3000 - 3000 K
Yes
75000 h
- Circuits
200000
- Power factor
0.90
- Operating voltage
21 V
- Length
563.00 mm
- (Ø)
17.00 mm
- Content
1 pc(s)
E (A - G)
- Energy consumption
8 kWh/1000h
- Dim
(Ø x L) 17.00 mm x 563.00 mm
- No. of bulbs
1
- Colour rendering
830
- Colour consistency (SDCM)
5
- Colour rendering index
80 Ra
89 Ra
- Light features
Dimmable
- Bulb shape
T5
- Light bulb features
incl. shard protection
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Material
Glass
IP20
- Max. temperature
50 °C
- Min. temperature
-20 °C
- Type
T5
- Factory colour
White
White
G5
White
DC
FALSE
FALSE
80-89
FALSE
17.00 mm
FALSE
136 lm/W
Tube, double-ended
563.00 mm
FALSE
21-21 V
IP20
Warm white <3300 K
Frosted
75000 h
350-350 mA
3000-3000 K
8.00 kWh
TRUE
7.3-7.3 W
1000-1000 lm
SDCM5
RG0
FALSE
FALSE
FALSE
FALSE
FALSE
Other
FALSE
200000
180.00-180.00°
1000 lm
FALSE
FALSE
FALSE
FALSE
E
FALSE
FALSE
0.90
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3499567 LEDVANCE LED tube EEC: E (A - G) G5 Tube shape T5 7.3 W Warm white (Ø x L) 17.00 mm x 563.00 mm incl. shard protection 1
User & Safety Instructions
User & Safety Instructions 3499567 LEDVANCE LED tube EEC: E (A - G) G5 Tube shape T5 7.3 W Warm white (Ø x L) 17.00 mm x 563.00 mm incl. shard protection 1
Description
LED tubes T5 exTERNAL for LED driver exTERNAL. Product Features: Designed for use with LED DRIVER LED TUBE EXTERNAL DALI. Glass bulb with splinter protection. Quality dimming from 1 - 100 %. High switching strength. Suitable in ambient temperatures from -20 - +50°C. Product benefits: Easy conversion to dimmable LED lighting. Easy application, no checking of the compatibility of the ballast needed. Suitable for emergency lighting with single battery. Split protection thanks to special PET coating. No hanging thanks to glass tube. Application areas: Industrial lighting (e.g. production plants, logistics centers, warehouses). Linear lighting solutions for offices, educational facilities, storerooms and retail trade. Shops, supermarkets. Safety instructions: For outdoor use, suitable wet room lights are available in accordance with data sheet and installation instructions. The operating temperature range of the LED tube is limited. If you are in doubt about the suitability of the application, please measure the maximum TC temperature on the product before installation. LED TUBE T5 EXTERNAL HO80 cannot be operated with the 2-channel driver. All electrical connections must be made by qualified personnel only. Disconnect power before installation.
This text is machine translated.
This text is machine translated.
Features
- LED tubes T5 exTERNAL for LED driver exTERNAL
- Designed to operate on LED DRIVER LED TUBE EXTERNAL DALI
- Nominal power 7.3 W.
- Nominal voltage 21 V
- Colour temperature 3000 K
- Luminous flux: 1000 lm
- Reflected beam angle: 180°
- Length (including round lamps): 563.00 mm
- Width 17.00 mm
- L90/B10 life at 25 °C: 75000 h / UKCA
