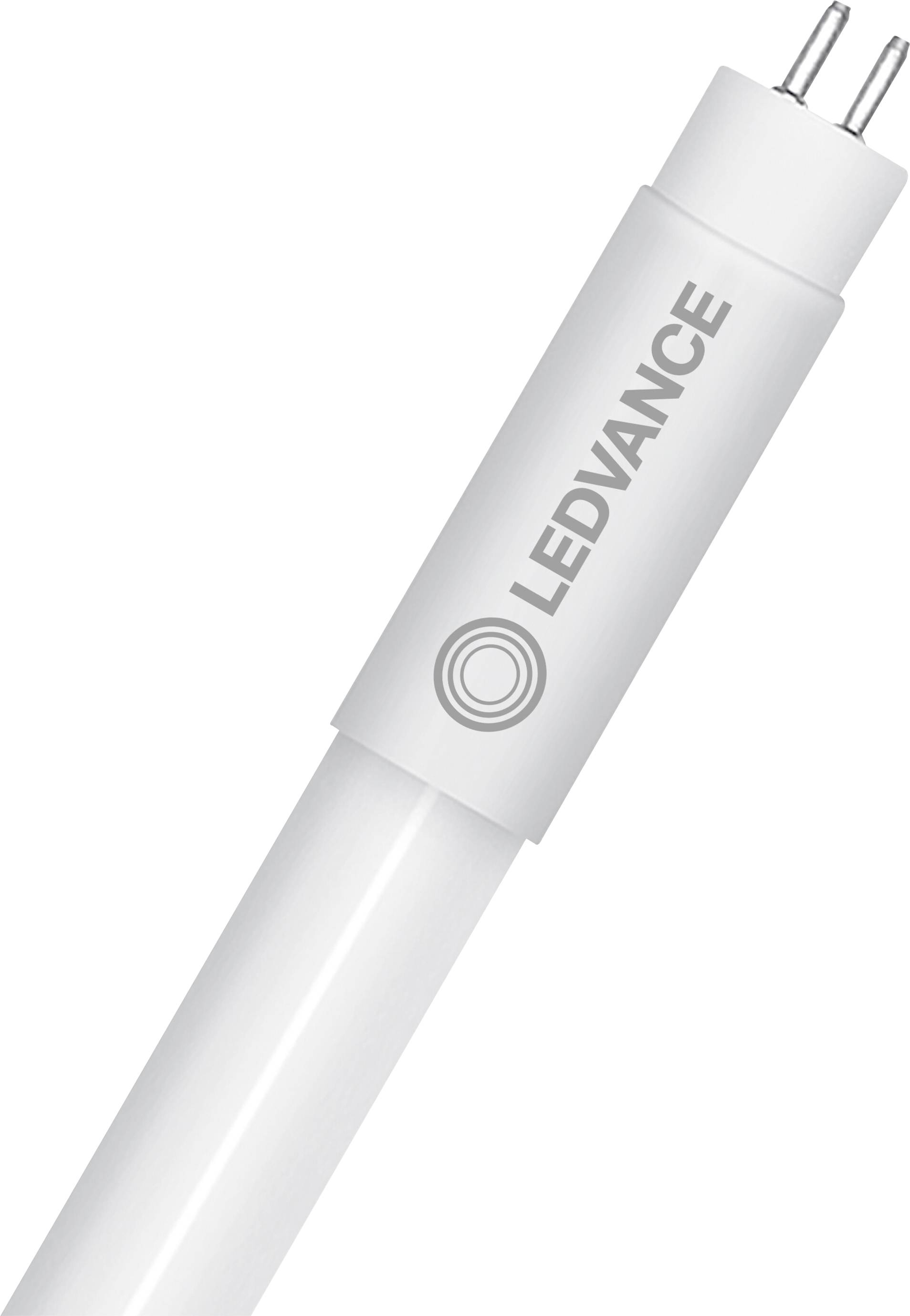

LEDVANCE LED tube EEC: E (A - G) G5 Tube shape T5 Electronic ballast 7 W Neutral white (Ø x L) 18.50 mm x 530.00 mm incl
EAN:
Part number:
Item no:
Highlights & Details
LED tube G5 7 W Neutral white EEC: E (A - G) T5 Electronic ballast
- Power= 7 W
- Total luminous flux= 850 lm
- Colour temperature= 4000 K
- Neutral white
Technical specifications
- Reflected beam angle 190°
- Suitable for EVG: Yes
- Suitable for magnetic ballast: No.
- IFTTT support available: Yes
- Lamp shape: Tubes, two-sided bases
- Rated voltage: 30 V
- Nominal current: 215 mA
- Product type
LED tube
Tube shape
G5
7 W
- Power range
5 W - 7.4 W
850 lm
- Version
matte
- Colour
Neutral white
- Operated via
Electronic ballast
- Total luminous flux
850 lm
4000 K
- Colour temperature range
4000 - 4000 K
30000 h
- Circuits
200000
- Power factor
0.59
- Operating voltage
30 V
- Length
530.00 mm
- (Ø)
18.50 mm
- Content
1 pc(s)
E (A - G)
- Energy consumption
7 kWh/1000h
- Dim
(Ø x L) 18.50 mm x 530.00 mm
- No. of bulbs
1
- Colour rendering
840
- Colour consistency (SDCM)
5
- Colour rendering index
80 Ra
89 Ra
- Bulb shape
T5
- Light bulb features
incl. shard protection
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Material
Glass
IP20
- Max. temperature
45 °C
- Min. temperature
-20 °C
- Type
T5
- Factory colour
White
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3499448 LEDVANCE LED tube EEC: E (A - G) G5 Tube shape T5 Electronic ballast 7 W Neutral white (Ø x L) 18.50 mm x 530.00 mm incl
User & Safety Instructions
User & Safety Instructions 3499448 LEDVANCE LED tube EEC: E (A - G) G5 Tube shape T5 Electronic ballast 7 W Neutral white (Ø x L) 18.50 mm x 530.00 mm incl
Description
LED tubes for electronic ballasts, splinter protection Product features: Retrofit replacement of existing T5 lamps on HF ballasts. Glass bulb with splinter protection. High color consistency: ? 5 SDCM (threshold unit). Lifecycle: Up to 30,000 hrs. Flicker-poor according to EU 2019/2020 (SVM ?0.4 / PstLM?1). Protection class: IP20 Compatible with many conventional electronic ballasts. Product advantages: No hanging thanks to glass technology. Simple, fast and safe replacement of lamps without rewiring. Also suitable for low temperature operation. Please observe all safety instructions. Applications: General lighting in ambient temperatures from -20 - +45 °C. Public buildings. Kitchens. Under cabinet lighting Legal notice: When replacing a T5 fluorescent lamp, total energy efficiency and light distribution depend on the type of installation. Safety instructions: For outdoor use, suitable wet room lights are available in accordance with data sheet and installation instructions. The operating temperature range of the LED tube is limited. If you are in doubt about the suitability of the application, please measure the maximum TC temperature on the product before installation. Not suitable for emergency lighting.
This text is machine translated.
This text is machine translated.
Features
- LED tubes for electronic ballasts, splinter protection
- Retrofit replacement of existing T5 lamps on HF ballasts
- Nominal power 7 W.
- Nominal voltage 30-55 V
- Colour temperature 4000 K
- Luminous flux: 850 lm
- Reflected beam angle: 190°
- Length (including round lamps): 530.00 mm
- Width 18.50 mm
- Life L90/B10 at 25 °C: 30000 h
