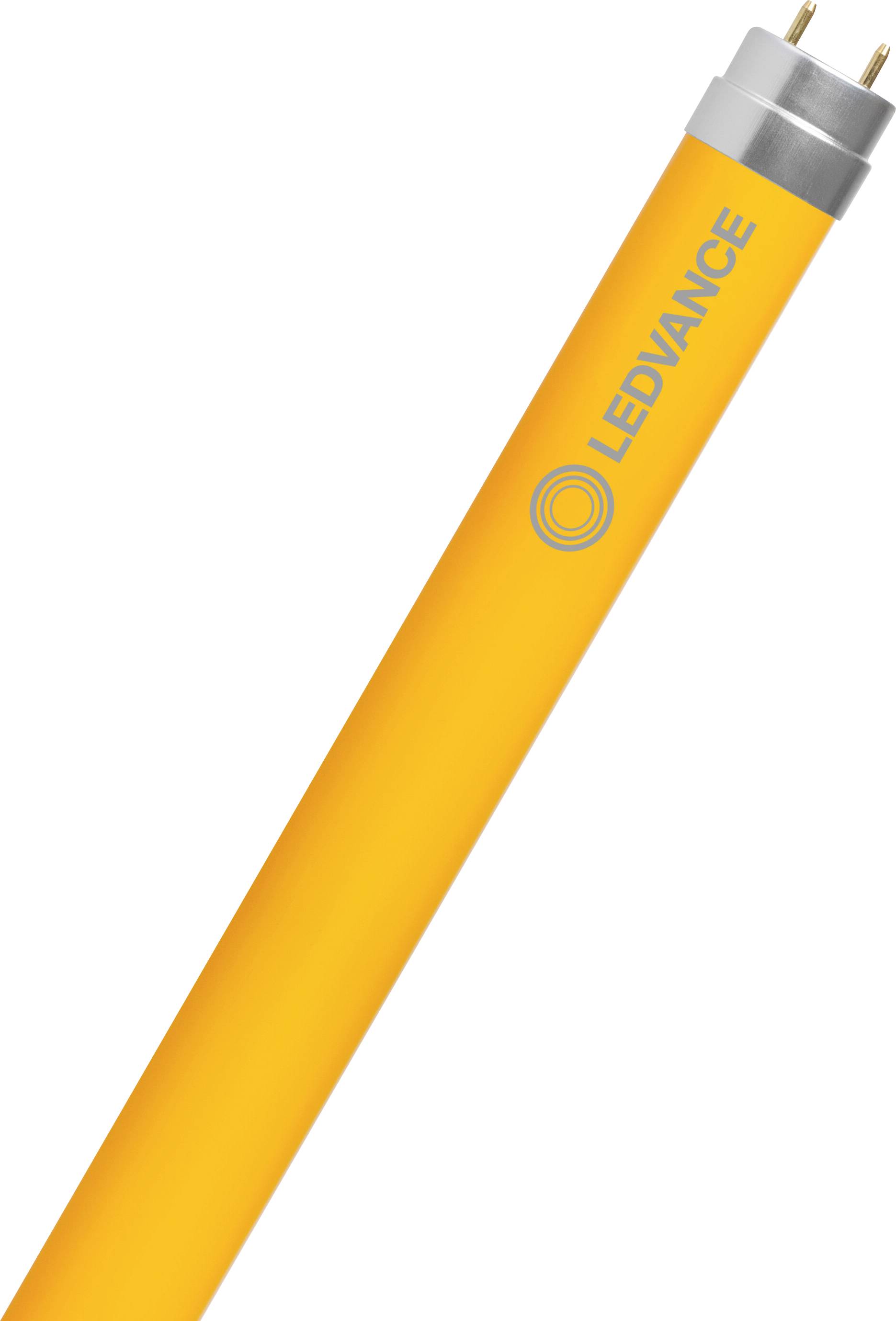

LEDVANCE LED tube G13 Tube shape T8 CB 18 W Warm white (Ø x L) 26.70 mm x 1212.00 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LED tube G13 18 W Warm white T8 CB
- Power= 18 W
- Total luminous flux= 2000 lm
- Colour temperature= 2000 K
- Warm white
Technical specifications
- Reflected beam angle 190°
- Suitable for EVG: No.
- Suitable for magnetic ballast: Yes
- IFTTT support available: Yes
- Lamp shape: Tubes, two-sided bases
- Nominal voltage: 220 V
- Rated current: 85 mA
- Product type
LED tube
Tube shape
G13
18 W
- Power range
10 W - 19.9 W
2000 lm
- Colour
Warm white
- Operated via
CB
- Total luminous flux
2000 lm
2000 K
- Colour temperature range
2000 - 2000 K
50000 h
- Circuits
200000
- Power factor
0.90
- Operating voltage
220 V
- Length
1212.00 mm
- (Ø)
26.70 mm
- Content
1 pc(s)
n.rel.
- Energy consumption
18 kWh/1000h
- Dim
(Ø x L) 26.70 mm x 1212.00 mm
- No. of bulbs
1
- Colour rendering
220
- Colour consistency (SDCM)
5
- Colour rendering index
20 Ra
39 Ra
- Bulb shape
T8
- Colour temperature (max.)
2000 K
- Colour temperature (min.)
2000 K
IP20
- Type
T8
- Factory colour
Yellow
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3499565 LEDVANCE LED tube G13 Tube shape T8 CB 18 W Warm white (Ø x L) 26.70 mm x 1212.00 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3499565 LEDVANCE LED tube G13 Tube shape T8 CB 18 W Warm white (Ø x L) 26.70 mm x 1212.00 mm 1 pc(s)
Description
Powerful LED tubes for electromagnetic ballasts (conventional ballast/WG) and mains voltage with UV filters. Product features: LED replacement for conventional T8 fluorescent lamps with G13 socket in conventional ballast lights or at mains voltage. Excellent filter at less than 500 nm Flicker arm according to EU 2019/2020 (SVM ?0.4 / PstLM?1). ENEC 10 VDE mark. Durability: Up to 50,000 h. Protection class IP20 Mercury-free and RoHS compliant. Product benefits: Excellent UV filter. Very high switching strength. Simple, fast and safe replacement of lamps without rewiring. Energy savings of up to 62% (as compared to T8 fluorescent lamp). Full brightness without warm-up phase, therefore Ideal suitable in combination with sensors. Also suitable for low temperature operation. Application areas: Microchip and semiconductor production. Applications in which the UV and blue light content must be reduced to a minimum. Industry. Technical equipment: Replacement starter for LED tubes. Legal notice: When replacing a T8 fluorescent lamp, total energy efficiency and light distribution depend on the design of the installation. Safety notes: Not suitable for use with electronic ballast. For outdoor use, a suitable wet room light according to the data sheet and installation guide is possible. Not suitable for emergency lighting. Disconnect power before installation.
This text is machine translated.
This text is machine translated.
Features
- Powerful LED tubes for electromagnetic ballasts (conventional ballast/WG) and mains voltage with UV filters
- LED replacement for conventional T8 fluorescent lamps with G13 socket in conventional ballast lights or with mains voltage
- Nominal power 18 W. Nominal voltage 220 - 240 V
- Colour temperature 2000 K
- Luminous flux: 2000 lm
- Reflected beam angle: 190°
- Length (including round lamps): 1212.00 mm
- Width 26.70 mm
- L90/B10 life at 25 °C: 50000 h / UKCA / VDE / ENEC / EAC
