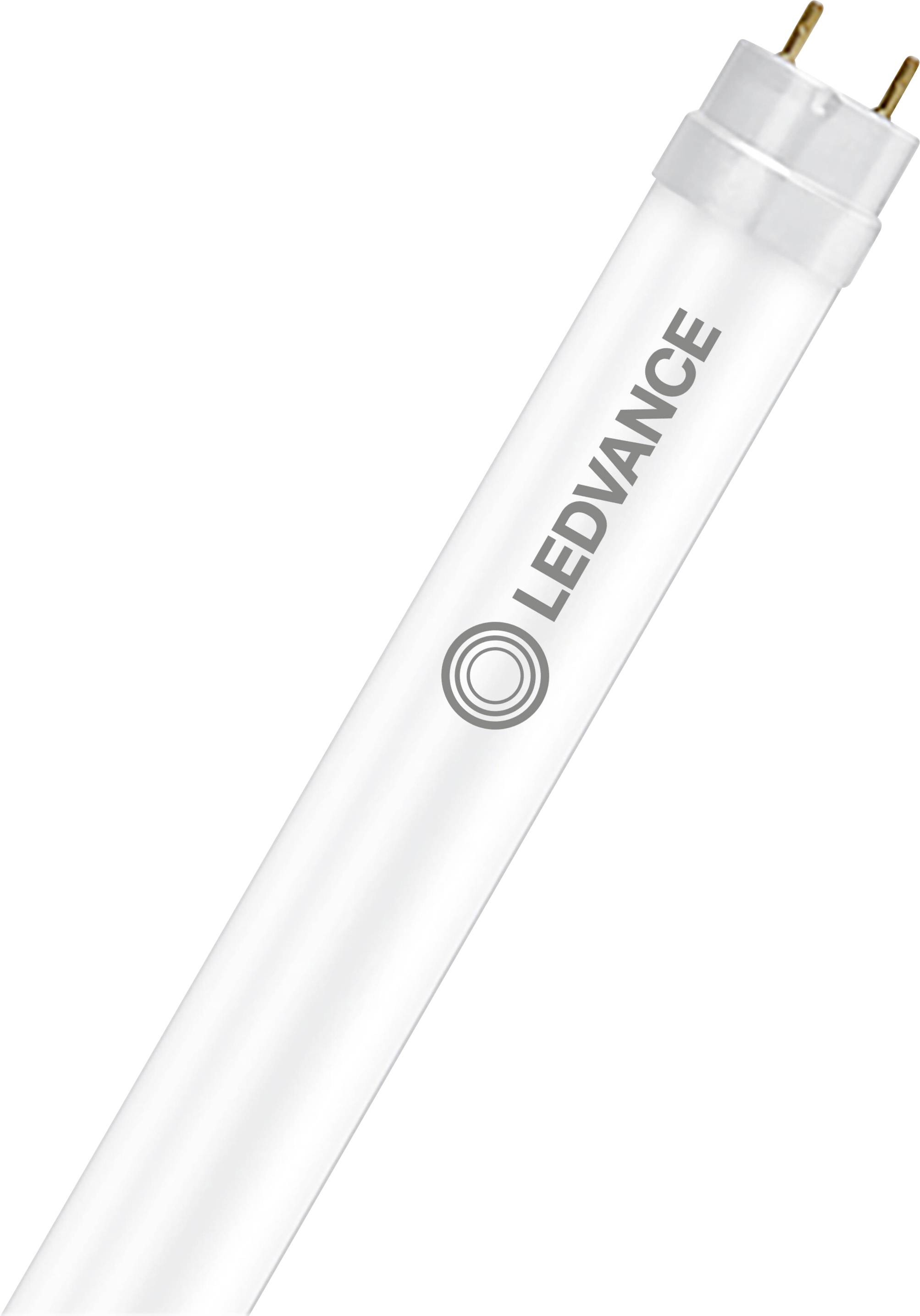

LEDVANCE LED tube G13 Tube shape T8 CB 5.2 W Neutral white (Ø x L) 26.70 mm x 603.00 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LED tube G13 5.2 W Neutral white T8 CB
- Power= 5.2 W
- Total luminous flux= 500 lm
- Colour temperature= 3300 K
- Neutral white
Technical specifications
- Reflected beam angle 190°
- Suitable for EVG: No.
- Suitable for magnetic ballast: Yes
- IFTTT support available: Yes
- Lamp shape: Tubes, two-sided bases
- Nominal voltage: 220 V
- Nominal current: 24 mA
- Product type
LED tube
Tube shape
G13
5.2 W
- Power range
5 W - 7.4 W
500 lm
- Version
matte
- Colour
Neutral white
- Operated via
CB
- Total luminous flux
500 lm
3300 K
- Colour temperature range
3300 - 3300 K
60000 h
- Circuits
200000
- Power factor
0.90
- Operating voltage
220 V
- Length
603.00 mm
- (Ø)
26.70 mm
- Content
1 pc(s)
n.rel.
- Energy consumption
6 kWh/1000h
- Dim
(Ø x L) 26.70 mm x 603.00 mm
- No. of bulbs
1
- Colour rendering
833
- Colour consistency (SDCM)
6
- Colour rendering index
80 Ra
89 Ra
- Bulb shape
T8
- Colour temperature (max.)
3300 K
- Colour temperature (min.)
3300 K
- Material
Glass
IP20
- Max. temperature
50 °C
- Min. temperature
-20 °C
- Type
T8
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3499539 LEDVANCE LED tube G13 Tube shape T8 CB 5.2 W Neutral white (Ø x L) 26.70 mm x 603.00 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3499539 LEDVANCE LED tube G13 Tube shape T8 CB 5.2 W Neutral white (Ø x L) 26.70 mm x 603.00 mm 1 pc(s)
Description
LED tubes for electromagnetic ballasts (conventional ballast) and mains voltage, splinter protection, for food presentations. Product Features: Specially adapted spectral light distribution (comparable to T8 FL NATURA 76). LED replacement for conventional T8 fluorescent lamps with G13 socket in conventional ballast lights or connected to mains voltage. Glass bulb with splitter protection for applications such as in the food industry. ENEC 10 VDE mark. Protection class: IP20 Mercury-free and RoHS compliant. Product benefits: Food looks particularly fresh and appetizing without being "beautiful" inadmissibly. Simple, fast and safe replacement of a fluorescent lamp without rewiring of the conventional ballast. Energy savings of up to 74% (as compared to T8 fluorescent lamp). Split protection thanks to special PET coating. Support in the implementation of HACCP concepts from production to product presentation. No hanging thanks to glass tube. Also suitable for low temperature operation. Application areas: Food presentation in e.g. butcher's shops, bakeries, supermarkets or meat-processing companies. Suitable for ambient temperatures from -20 to +50° C. Technical equipment: Suitable for use with low-loss and conventional ballasts. Legal notice: When replacing a T8 fluorescent lamp, total energy efficiency and light distribution depend on the design of the installation. Safety notes: Not suitable for use with electronic ballast. For outdoor use, a suitable wet room light according to the data sheet and installation guide is possible. Not suitable for emergency lighting. Disconnect power before installation.
This text is machine translated.
This text is machine translated.
Features
- LED tubes for electromagnetic ballasts (conventional ballast) and mains voltage, splinter protection, for food presentations
- Specially adapted spectral light distribution (comparable to T8 FL NATURA 76)
- Nominal power 5.2 W. Nominal voltage 220 - 240 V
- Colour temperature 3300 K
- Luminous flux: 500 lm
- Reflected beam angle: 190°
- Length (including round lamps): 603.00 mm
- Width 26.70 mm
- L90/B10 life at 25 °C: 60000 h / UKCA / VDE / ENEC / EAC
