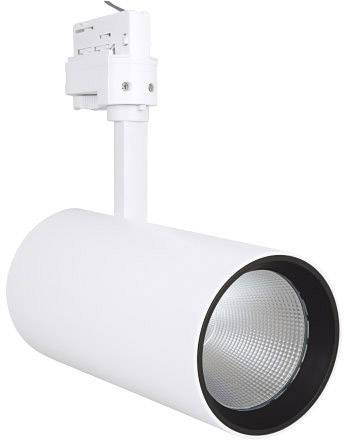

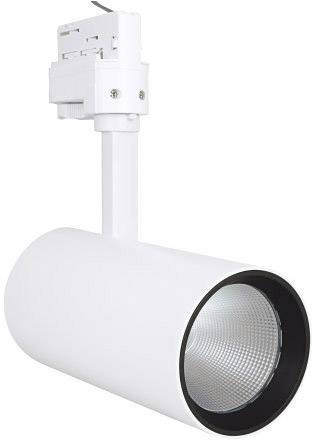

LEDVANCE TRACKLIGHT SPOT D85 35W High voltage mounting rail light 3-phase Built-in LED 35 W LED (monochrome) White (matt
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Track LED rail light
- Power= 35 W
- Total luminous flux= 2660 lm
- Colour temperature= 3000 K
- Warm white
Technical specifications
- Product type
High voltage mounting rail light
- Series
3-phase
- Operating voltage
230 V
- No. of bulbs
1
Built-in LED
- Bulb type
LED (monochrome)
- Rating per bulb
35 W
35 W
3000 K
- Colour
Warm white
2660 lm
- Total luminous flux
2660 lm
- Light features
Pivoted
Swivelling
- Rotation range (max.)
350°
- Swivel range (max.)
90°
- Radiation angle
24°
IP20
- Protection class
II
- Factory colour
White (matt)
- Material
Aluminium (die-cast)
- Weight
1.02 kg
- Dim
(Ø x H) 8.5 cm x 26.7 cm
n.rel.
- Width
85 mm
- Height
26.7 cm
- Length
85 mm
- (Ø)
8.5 cm
- Colour rendering index
90-100
- Depth
269 mm
No
- Light bulb included
Yes
- UKCA
not relevant
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2100839 LEDVANCE TRACKLIGHT SPOT D85 35W High voltage mounting rail light 3-phase Built-in LED 35 W LED (monochrome) White (matt
User & Safety Instructions
User & Safety Instructions 2100839 LEDVANCE TRACKLIGHT SPOT D85 35W High voltage mounting rail light 3-phase Built-in LED 35 W LED (monochrome) White (matt
Warranty Terms
Warranty Terms 2100839 LEDVANCE TRACKLIGHT SPOT D85 35W High voltage mounting rail light 3-phase Built-in LED 35 W LED (monochrome) White (matt
Description
Included 3-phase adapter compatible with common bus bars (STAFF, NORLUX, GLOBAL, NUCO, NORDIC). Direct replacement for lamps using HID lamps
This text is machine translated.
This text is machine translated.
Features
- Reflector can be easily replaced thanks to bayonet lock and rubber suction
Scope of delivery
- LED-rail lamp
- User manual.
