Legrand 049230 LEGRAND FragryRex 3/6/12min 049230 TDR 230 V 1 pc(s)
EAN:
Part number:
Item no:
Product type
TDR
Nominal voltage
230 V
Dim
(W x H x D) 45.5 x 48 x 14 mm
Content
1 pc(s)
Width
45.5 mm
Datasheet (PDF)
Technical specifications
- Nominal voltage
230 V
- Product type
TDR
- Dim
(W x H x D) 45.5 x 48 x 14 mm
- Content
1 pc(s)
- Width
45.5 mm
- Height
48 mm
- Depth
14 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2158024 Legrand 049230 LEGRAND FragryRex 3/6/12min 049230 TDR 230 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2158024 Legrand 049230 LEGRAND FragryRex 3/6/12min 049230 TDR 230 V 1 pc(s)
Description

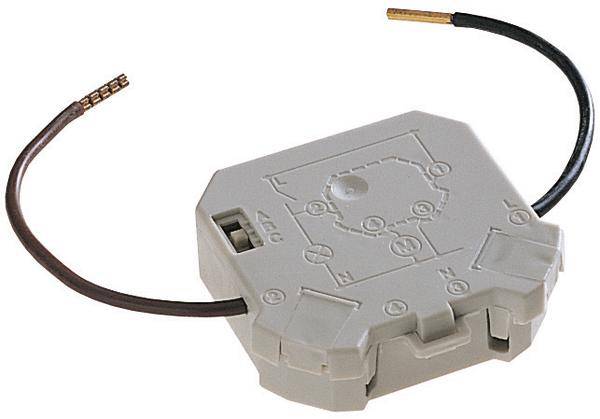

Legrand FüryRex, time relay, electronic, operating voltage: 230V 50/60 Hz, delay time: 3 - 6 - 12 min., can be switched on again, as a delayed shut-off switch, e.g. for fans in internal rooms: After switching off the light, the fan continues to run for the set time and then switches off. Switching output via semiconductor. Switching capacity: Min. 10 VA, max. 200 VA, only for e.g. fans or smaller motors. Dimensions (HxWxD): 48 x 45.5 x 14 mm, for installation in UP sockets, for example.
