Legrand 400401 Legrand 400401 terminal block 2P/100A 7KL 4M Terminal block 1 pc(s)
EAN:
Part number:
Item no:
Product type
Terminal block
Dim
(W x H) 71 mm x 52 mm
Content
1 pc(s)
Width
71 mm
Height
52 mm
Datasheet (PDF)
Technical specifications
- Product type
Terminal block
- Dim
(W x H) 71 mm x 52 mm
- Content
1 pc(s)
- Width
71 mm
- Height
52 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3359771 Legrand 400401 Legrand 400401 terminal block 2P/100A 7KL 4M Terminal block 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3359771 Legrand 400401 Legrand 400401 terminal block 2P/100A 7KL 4M Terminal block 1 pc(s)
Description

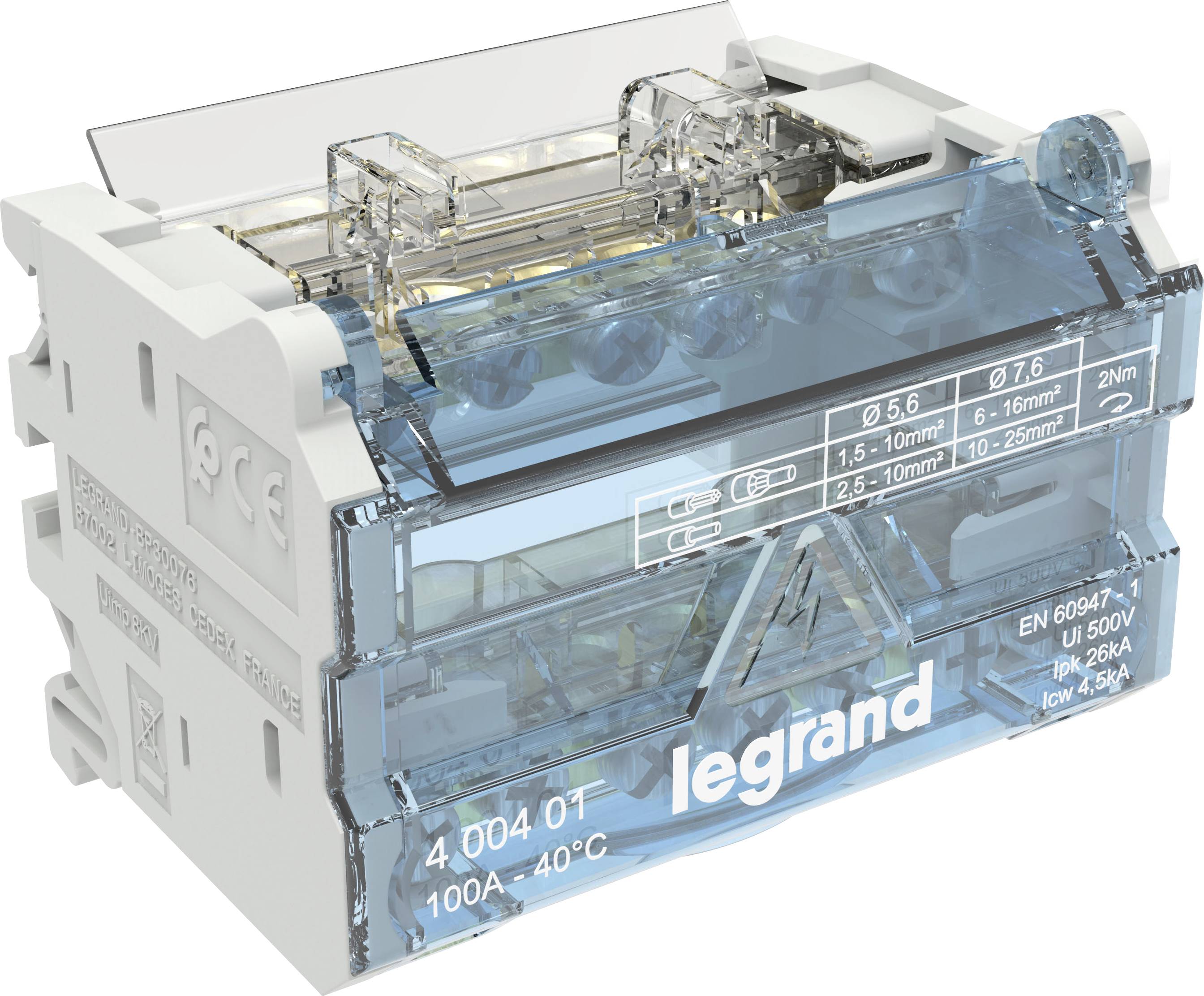

Legrand terminal block, 2-pin, rated current In 100 A, number of clamping points: 7, according to EN 60947-1, insulation voltage UI 500 V, rated surge resistance Ipk 26 kA, rated short-time current stability ICW 4.5 kA, with rear insulation and transparent protective cover front, insulation protection between the individual terminal rails, fixing on top hat profile rail EN 60715. Module width 4 division units.
