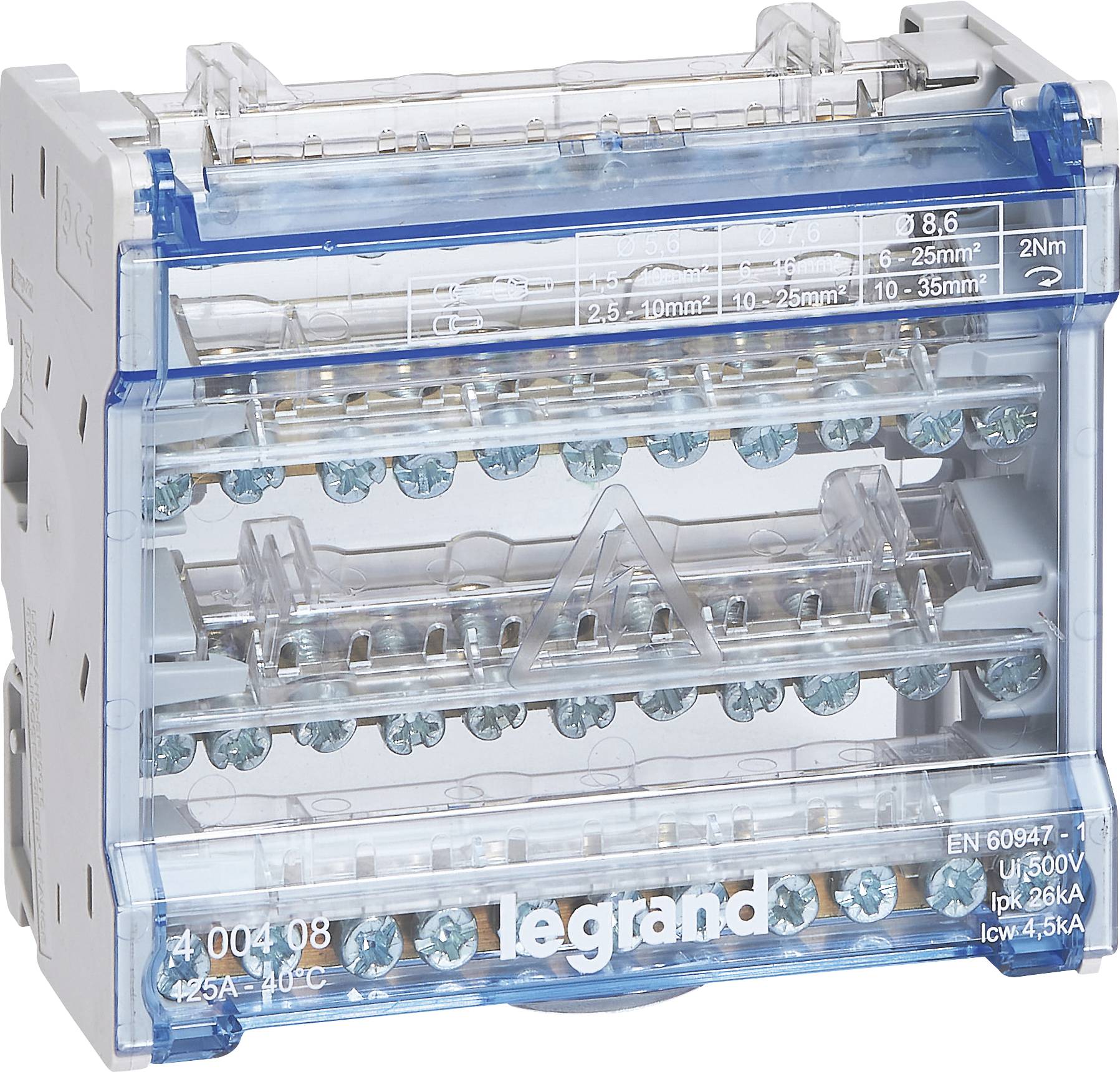

Legrand 400408 Legrand 400408 terminal block 4P/125A 11KL 6m Terminal block 1 pc(s)
EAN:
Part number:
Item no:
Product type
Terminal block
Dim
(W x H) 106 mm x 92 mm
Content
1 pc(s)
Width
106 mm
Height
92 mm
Datasheet (PDF)
Technical specifications
- Product type
Terminal block
- Dim
(W x H) 106 mm x 92 mm
- Content
1 pc(s)
- Width
106 mm
- Height
92 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3359772 Legrand 400408 Legrand 400408 terminal block 4P/125A 11KL 6m Terminal block 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3359772 Legrand 400408 Legrand 400408 terminal block 4P/125A 11KL 6m Terminal block 1 pc(s)
Description
Legrand terminal block, 4-pin, rated current In 125 A, number of clamping points: 11, according to EN 60947-1, insulation voltage UI 500 V, rated surge resistance Ipk 26 kA, rated short-time current stability ICW 4.5 kA, with rear insulation and transparent protective cover front, insulation protection between the individual terminal rails, fixing on top hat profile rail EN 60715. Module width 6 division units.
