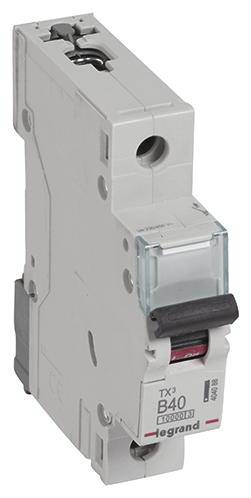

Legrand 404088 Legrand 404088 Circuit breaker 40 A 230 V AC, 400 V AC
Product type
Circuit breaker
Number of pins
1
Release characteristics
B
Nominal current - rounded value
40 A
Nominal current
40 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Pollution level: 2
- Mains frequency: 50/60 Hz.
- Protection class: IP20
- Product type
Circuit breaker
- Number of pins
1
- Release characteristics
B
- Nominal current - rounded value
40 A
- Nominal current
40 A
- Content
1 pc(s)
- Switch-off capacity
10 kA
- Nominal voltage
230 V AC
400 V AC
- Depth
44 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2153054 Legrand 404088 Legrand 404088 Circuit breaker 40 A 230 V AC, 400 V AC
User & Safety Instructions
User & Safety Instructions 2153054 Legrand 404088 Legrand 404088 Circuit breaker 40 A 230 V AC, 400 V AC
Description
The B characteristic curve is primarily intended for line protection in light and socket circuits. According to EN 60898-1, VDE 0641-11, EN 60947-2, Technical data: Rated voltage 230/400 V, 50/60 Hz, rated breaking capacity 10 kA as per EN 60898-1, energy limitation class 3, fixing on top hat profile rail EN 60715 through a snap-in quick fastening, clear information on the front of each device, clear switching position indicator red/green on the shift lever (lockable), with labeling window, with under-plug protection for safe insertion of the conductor in the lift terminal, attachment of auxiliary devices possible.
