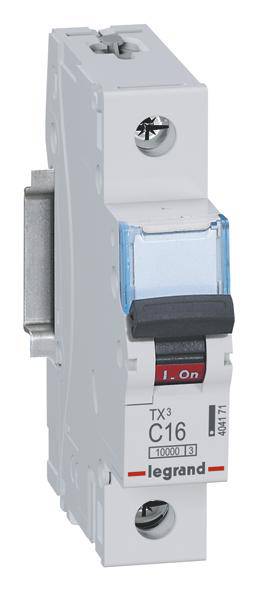

Legrand 404171 Legrand 404171 Circuit breaker 16 A 230 V AC, 400 V AC
Product type
Circuit breaker
Number of pins
1
Release characteristics
C
Nominal current - rounded value
16 A
RoHS-compliant
Yes
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Pollution level: 2
- Mains frequency: 50/60 Hz.
- Protection class: IP20
- Product type
Circuit breaker
- Number of pins
1
- Release characteristics
C
- RoHS-compliant
Yes
- Nominal current - rounded value
16 A
- Nominal current
16 A
- Factory colour
Multicolour
- Dim
(W x H x D) 88 x 18 x 44 mm
- Content
1 pc(s)
- Switch-off capacity
10 kA
- Nominal voltage
230 V AC
400 V AC
- Width
88 mm
- Height
18 mm
- Depth
44 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2153063 Legrand 404171 Legrand 404171 Circuit breaker 16 A 230 V AC, 400 V AC
User & Safety Instructions
User & Safety Instructions 2153063 Legrand 404171 Legrand 404171 Circuit breaker 16 A 230 V AC, 400 V AC
Description
The C characteristic curve is intended for line protection for devices with high inrush currents (e.g. motors and transformers). According to EN 60898-1, VDE 0641-11, EN 60947-2, Technical data: Rated voltage 230/400 V, 50/60 Hz, rated breaking capacity 10 kA as per EN 60898-1, energy limitation class 3, fixing on top hat profile rail EN 60715 through a snap-in quick fastening, clear information on the front of each device, clear switching position indicator red/green on the shift lever (lockable), with labeling window, with under-plug protection for safe insertion of the conductor in the lift terminal, attachment of auxiliary devices possible.
This text is machine translated.
