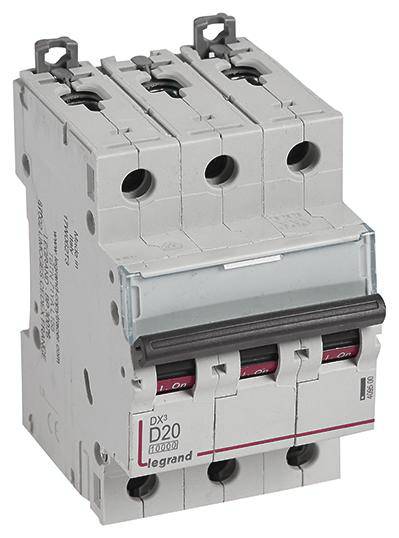

Legrand 409500 Legrand 409500 Circuit breaker 20 A 400 V AC
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
3
Release characteristics
D
Nominal current - rounded value
20 A
Nominal current
20 A
Datasheet (PDF)
Technical specifications
- Pollution level: 2
- Mains frequency: 50/60 Hz.
- Protection class: IP20
- Product type
Circuit breaker
- Number of pins
3
- Release characteristics
D
- Nominal current - rounded value
20 A
- Nominal current
20 A
- Content
1 pc(s)
- Switch-off capacity
10 kA
- Nominal voltage
400 V AC
- Depth
44 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2158435 Legrand 409500 Legrand 409500 Circuit breaker 20 A 400 V AC
User & Safety Instructions
User & Safety Instructions 2158435 Legrand 409500 Legrand 409500 Circuit breaker 20 A 400 V AC
Description
The D characteristic curve must be provided for line protection in power circuits with very high inrush currents. According to EN 60898-1, VDE 0641-11, EN 60947-2, Technical data: Rated voltage 400 V, 50/60 Hz, rated breaking capacity 10 kA as per EN 60898-1, mounted on top hat profile rail EN 60715 by snap-on quick mounting, clear information on the front of each device, clear switching position indicator red/green on the gear lever (lockable), with labeling window, with under-plug protection for safe insertion of the conductor in the lift clamp, attachment of auxiliary devices possible.
