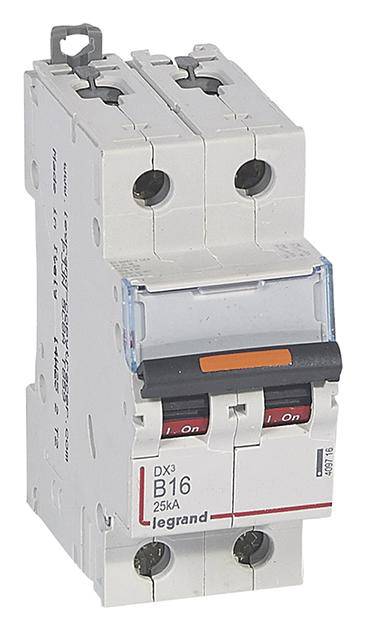

Legrand 409716 Legrand 409716 Circuit breaker 16 A 400 V AC
Product type
Circuit breaker
Number of pins
2
Release characteristics
B
Nominal current - rounded value
16 A
Nominal current
16 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Pollution level 3
- Mains frequency: 50/60 Hz.
- Protection class: IP20
- Product type
Circuit breaker
- Number of pins
2
- Release characteristics
B
- Nominal current - rounded value
16 A
- Nominal current
16 A
- Content
1 pc(s)
- Switch-off capacity
25 kA
- Nominal voltage
400 V AC
- Depth
44 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2151525 Legrand 409716 Legrand 409716 Circuit breaker 16 A 400 V AC
User & Safety Instructions
User & Safety Instructions 2151525 Legrand 409716 Legrand 409716 Circuit breaker 16 A 400 V AC
Description
The B characteristic curve is primarily intended for line protection in light and socket circuits. According to EN 60947-2, Technical data: Rated voltage 400 V, 50/60 Hz, rated breaking capacity 25 kA according to EN 60947-2, mounting on top hat profile rail EN 60715 through two locking quick attachments, clear information on the front of each device, clear switching position indicator red/green on the shift lever (lockable), with labeling window, can be fitted with Legrand pin comb rails. Attachment of auxiliary devices possible.
