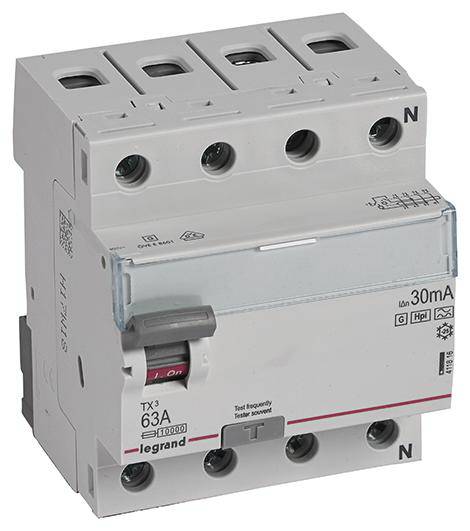

Legrand 411816 411816 RCCB A 63 A 400 V
Product type
RCCB
Number of pins
4
Release characteristics
A
Nominal current - rounded value
63 A
Nominal current
63 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Frequency: 50 Hz
- Protection class: IP20
- Product type
RCCB
- Number of pins
4
- Release characteristics
A
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Dim
(W x H x D) 89 x 78 x 44 mm
- Switch-off capacity
10 kA
- Factory colour
Multicolour
- Content
1 pc(s)
- Nominal voltage
400 V
- Width
89 mm
- Height
78 mm
- Depth
44 mm
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2153854 Legrand 411816 411816 RCCB A 63 A 400 V
User & Safety Instructions
User & Safety Instructions 2153854 Legrand 411816 411816 RCCB A 63 A 400 V
Description
Legrand FI-circuit breaker TX3, type A-G, for alternating and pulsating DC fault currents. According to VDE 0664-10, EN 61008-1, short-term delayed, delayed at least 10 ms, rated voltage 2-pole: 230 V~ / 4-pole : 400 V~, rated frequency 50 Hz , rated short-circuit current Inc 10 kA at a suitable pre-fuse , surge current resistant to 3000 A, rated switching capacity = 630 A, rated fault rating I &Delta, m= 1000 A, Mounting on top hat profile rail EN 60715 by snap-in quick attachments, clear information on the front of each device, clear switching position indicator red/green on the shift lever (lockable), with labeling window, with under-plug protection for the safe insertion of the conductor in the lift clamp, attachment of auxiliary devices possible.
