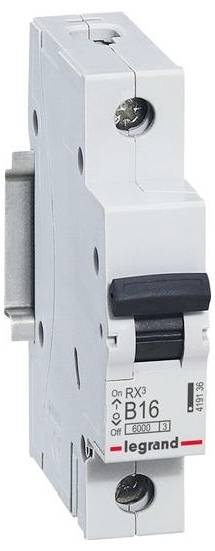

Legrand 419136 Circuit breaker 16 A
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
1
Release characteristics
B
Nominal current - rounded value
16 A
Type
Flush-mounted
Datasheet (PDF)
Technical specifications
- Type
Flush-mounted
- Product type
Circuit breaker
- Number of pins
1
- Release characteristics
B
- Nominal current - rounded value
16 A
- Nominal current
16 A
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3818555 Legrand 419136 Circuit breaker 16 A
User & Safety Instructions
User & Safety Instructions 3818555 Legrand 419136 Circuit breaker 16 A
Description
Legrand circuit breaker RX3 in accordance with EN 60898-1, VDE 0641-11, EN 60947-2, 1-pin, B characteristic, Rated current In 16 A, rated breaking capacity ICN 6 kA according to EN 60898-1, rated voltage Un 230/400 VAC, rated frequency 50/60 Hz, energy limitation class 3, fastening on top hat profile rail EN 60715 by a snap-in fastening, clear information on front of each device, labeled switch position indicator on/off, with labeling field, mounting of auxiliary devices not possible. Circuit breakers with B-characteristic are primarily intended for cable protection in light and socket circuits.
