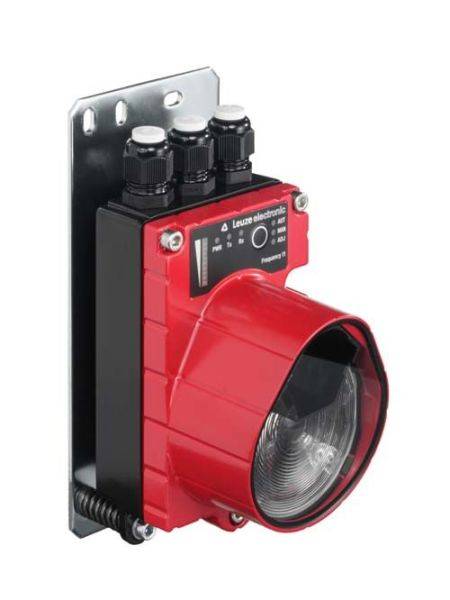

Leuze Electronic 50038288 Leuze Optical data transmission RS-422 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Optical data transmission
- Interfaces
RS-422
- Type
Leuze
- Min. operating temperature
-5 °C
- Operating temperature
-5 °C (min)
- Manufacturer part #
50038288
FALSE
Other
Other
Other
Other
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982438 Leuze Electronic 50038288 Leuze Optical data transmission RS-422 1 pc(s)
Description
Pre-assembled on: Mounting plate; special design: Operation of parallel light axes, no influence from reflective surfaces; working area: 200 ... 300,000 mm; transmission frequency: F1; usable opening angle Transmitter: 1 °; supply voltage: 18 ... 30 V, DC; interface RS 422, Interbus-S; Interbus-S, Transmission speed: 2 Mbit/s; connection: terminal, M16; dimensions: 89.25 mm x 196.5 mm x 111.8 mm; ambient temperature operation: -5 ... 50 °C; protection class IP 65
