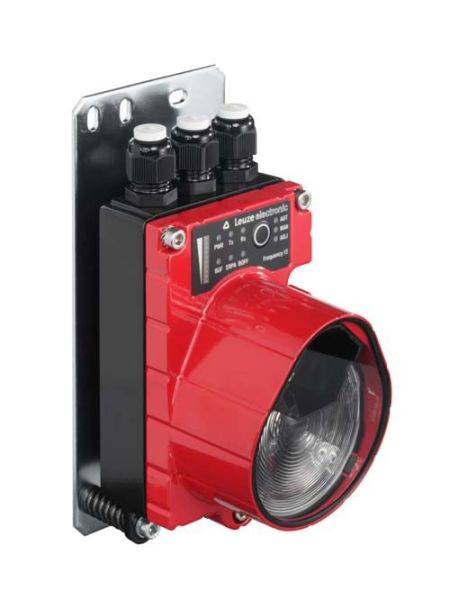

Leuze Electronic 50038300 Leuze Optical data transmission 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Optical data transmission
- Type
Leuze
- Min. operating temperature
-5 °C
- Operating temperature
-5 °C (min)
- Manufacturer part #
50038300
FALSE
Other
Other
230.4 kBit/s
Other
Other
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982436 Leuze Electronic 50038300 Leuze Optical data transmission 1 pc(s)
Description
Pre-assembled on: Mounting plate; special design: Operation of parallel light axes, no influence from reflective surfaces; working area: 200 ... 120,000 mm; transmission frequency: F1; usable opening angle Transmitter: 1 °; supply voltage: 18 ... 30 V, DC; interface: Rockwell DH+/RIO; Rockwell DH+/RIO, transmission speed: 57.6 ... 230.4 kBit/s; connection: Terminal, M16; dimensions: 89.25 mm x 196.5 mm x 111.8 mm; ambient temperature operation: -5 ... 50 °C; protection class IP 65
