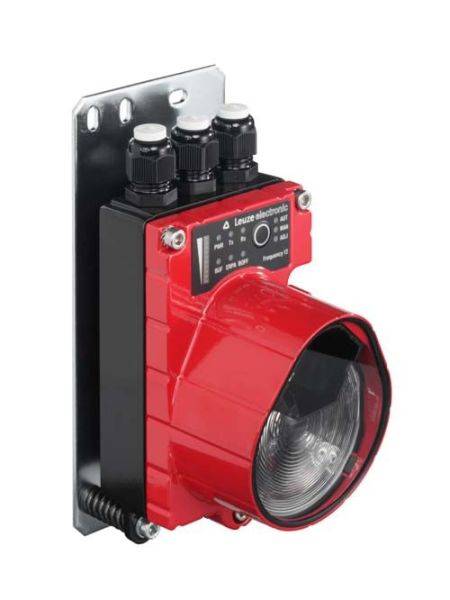

Leuze Electronic 50039939 Leuze Optical data transmission CANopen 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Optical data transmission
- Interfaces
CANopen
- Type
Leuze
- Min. operating temperature
-5 °C
- Operating temperature
-5 °C (min)
- Dim
(W x H) 196.5 mm x 111.8 mm
- Height
111.8 mm
- Width
196.5 mm
- Manufacturer part #
50039939
FALSE
Other
Other
125 kBit/s
Other
Other
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982430 Leuze Electronic 50039939 Leuze Optical data transmission CANopen 1 pc(s)
Description
Pre-assembled on: Mounting plate; special design: Operation of parallel light axes, no influence from reflective surfaces; working area: 200 ... 200,000 mm; transmission frequency: F1; usable opening angle Transmitter: 1 °; supply voltage: 18 ... 30 V, DC; interface: CANopen, DeviceNET; CANopen, Transmission speed: 10 ... 1,000 kBit/s; DeviceNet, transmission rate: 125 ... 500 kBit/s; connection: Terminal, M16; dimensions: 89.25 mm x 196.5 mm x 111.8 mm; ambient temperature operation: -5 ... 50 °C; protection class IP 65
