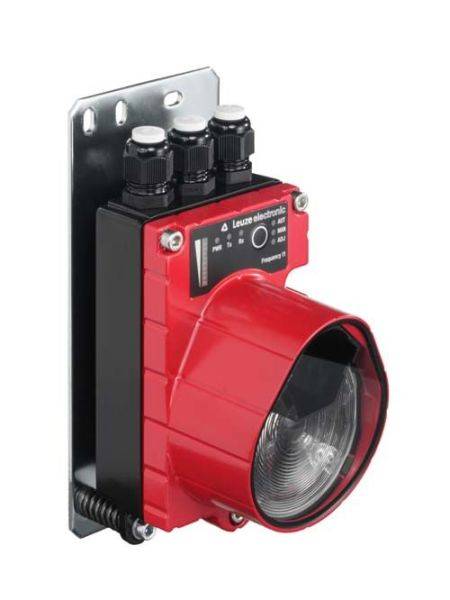

Leuze Electronic 50041338 Leuze Optical data transmission RS-422 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Optical data transmission
- Interfaces
RS-422
- Type
Leuze
- Min. operating temperature
-5 °C
- Operating temperature
-5 °C (min)
- Dim
(W x H) 89.25 mm x 196.5 mm
- Height
196.5 mm
- Width
89.25 mm
- Manufacturer part #
50041338
FALSE
Other
Other
Other
Other
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982426 Leuze Electronic 50041338 Leuze Optical data transmission RS-422 1 pc(s)
Description
Pre-assembled on: Mounting plate; special version: Wide-angle design, operation of parallel light axes, no influence on reflective surfaces; working range: 200 ... 30,000 mm; transmission frequency: F2; usable opening angle Transmitter: 3 °; supply voltage: 18 ... 30 V, DC; interface RS 422, Interbus-S; Interbus-S, Transmission speed: 2 Mbit/s; connection: terminal, M16; dimensions: 89.25 mm x 196.5 mm x 111.8 mm; ambient temperature operation: -5 ... 50 °C; protection class IP 65
