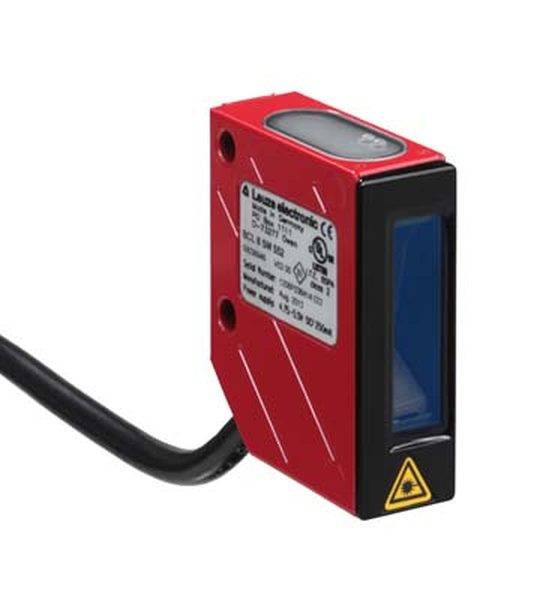

Leuze Electronic 50105420 Barcode reader 50105420 1 pc(s)
Product type
Barcode reader
Type
50105420
Content
1 pc(s)
Voltage type
DC
Suitable for safety functions
FALSE
EAN:
Part number:
Item no:
Technical specifications
- Product type
Barcode reader
- Type
50105420
- Content
1 pc(s)
DC
FALSE
0-40 °C
Other
Cable
4.75-5.5 V
Safety class 3
FALSE
Class 1
FALSE
FALSE
FALSE
655 nm
40.3 mm
48 mm
15 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2980613 Leuze Electronic 50105420 Barcode reader 50105420 1 pc(s)
Description
Functions: Auto config, output format selectable, AutoRefAct, Daisy Chain, I/O, Adjustment mode, LED display, reader control, multiple reading, reference code comparison; Scan rate, typical: 500 scans/s; reading distance: 50 ... 110 mm; reading technology: Line scanner; light beam outlet: Front; supply voltage: 4.75 ... 5.5 V, DC; selectable inputs/outputs: 1 pcs.; interface: RS 232; connection: Cable; dimensions: 40.3 mm x 48 mm x 15 mm; display: LED; ambient temperature operation: 0 ... 40 °C; approvals c UL us
