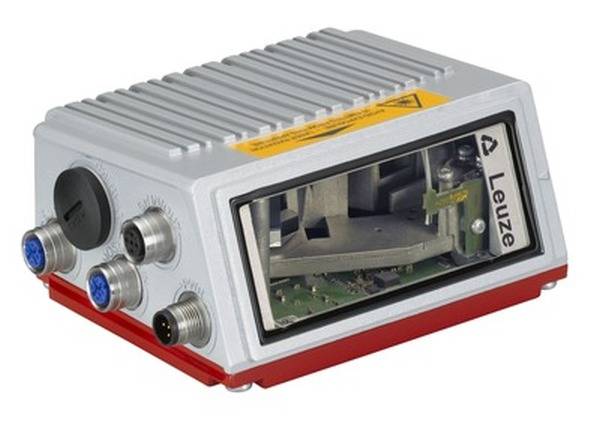

Leuze Electronic 50105469 Barcode reader 50105469 1 pc(s)
Product type
Barcode reader
Type
50105469
Content
1 pc(s)
Voltage type
DC
Suitable for safety functions
FALSE
EAN:
Part number:
Item no:
Technical specifications
- Product type
Barcode reader
- Type
50105469
- Content
1 pc(s)
DC
FALSE
-35-40 °C
Other
Other
Safety class 3
FALSE
Class 2
FALSE
FALSE
FALSE
650 nm
123.5 mm
63 mm
106.5 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2980607 Leuze Electronic 50105469 Barcode reader 50105469 1 pc(s)
Description
Special version: Heating; functions: AutoConfig, AutoControl, AutoRefAct, Codefragment technology, Heating, Adjustment Mode, LED display, reference code comparison; Scan rate, typical: 1,000 scans/s; reading distance: 500 ... 1,600 mm; reading technology: Line scanner; light beam outlet: Front; supply voltage: 24 V, DC, -20 ... 20 %; selectable in/outputs: 4 pcs.; interface: MultiNet Plus, RS 232, RS 422, RS 485, USB; Connection: USB; Dimensions: 123.5 mm x 63 mm x 106.5 mm; Display: LED, monochrome graphic display 128x64 pixel, with backlight; control elements: button(s); ambient temperature operation: -35 ... 40 °C; approvals c UL us
