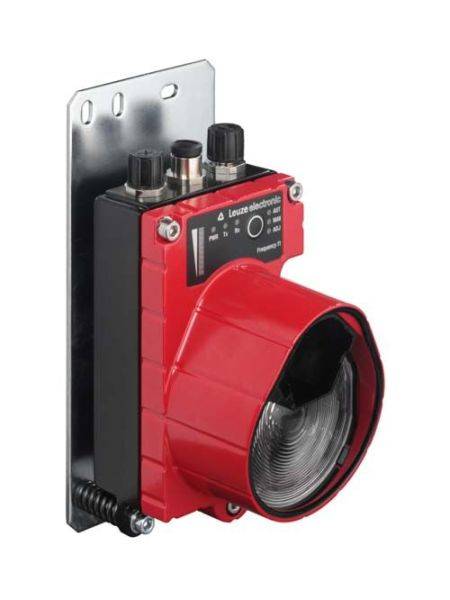

Leuze Electronic 50106024 50106024 Optical data transmission Profibus 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Optical data transmission
- Interfaces
Profibus
- Type
50106024
- Min. operating temperature
-5 °C
- Operating temperature
-5 °C (min)
- Manufacturer part #
50106024
FALSE
Other
Other
9.6 kBit/s
Other
Other
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982908 Leuze Electronic 50106024 50106024 Optical data transmission Profibus 1 pc(s)
Description
Pre-assembled on: Mounting plate; special design: Operation of parallel light axes, no influence from reflective surfaces; working area: 200 ... 120,000 mm; transmission frequency: F2; usable opening angle Transmitter: 1 °; supply voltage: 18 ... 30 V, DC; INTERFACE: PROFIBUS DP, RS 485; PROFIBUS DP, Transmission speed: 0.0096 ... 1.5 Mbps; connection: Circular connector, M12; dimensions: 89.25 mm x 196.5 mm x 111.8 mm; ambient temperature operation: -5 ... 50 °C; protection class IP 65
