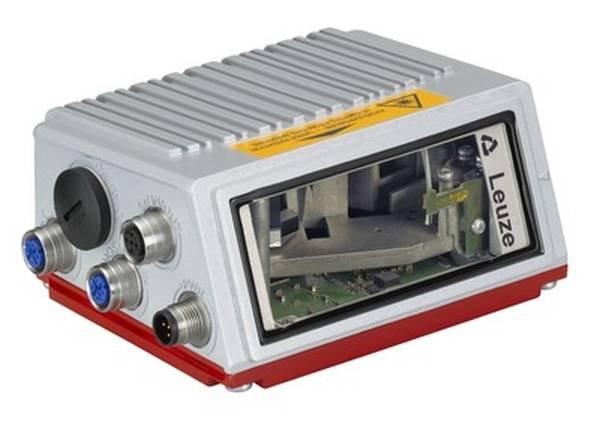

Leuze Electronic 50113187 Barcode reader 50113187 1 pc(s)
Product type
Barcode reader
Type
50113187
Content
1 pc(s)
Voltage type
DC
Suitable for safety functions
FALSE
EAN:
Part number:
Item no:
Technical specifications
- Product type
Barcode reader
- Type
50113187
- Content
1 pc(s)
DC
FALSE
0-40 °C
Other
Other
10-30 V
Safety class 3
FALSE
Class 2
FALSE
FALSE
FALSE
650 nm
123.5 mm
63 mm
106.5 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2980577 Leuze Electronic 50113187 Barcode reader 50113187 1 pc(s)
Description
Functions: AutoConfig, AutoControl, AutoRefAct, Codefragment Technique, Adjustment Mode, Reference code comparison; scan rate, typical: 1,000 scans/s; read distance: 300 ... 1,000 mm; reading technology: Line scanner; light beam outlet: Front; supply voltage: 10 ... 30 V, DC; Selectable inputs/outputs: 4 pcs; Interface: PROFINET, USB; Connection: USB; Dimensions: 123.5 mm x 63 mm x 106.5 mm; Display: LED, monochrome graphic display 128x64 pixels, with background lighting; Control elements: Key(s), via service interface; Ambient temperature Operation: 0 ... 40 °C; approvals c UL us
