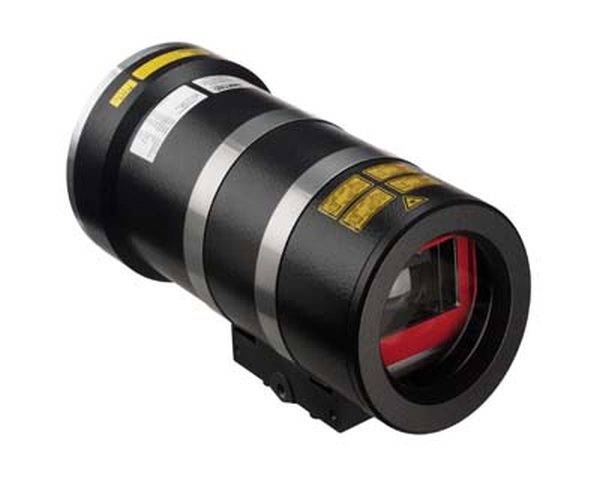

Leuze Electronic 50122319 Optical proximity sensor 1 pc(s) Max. range (open field): 30.000 mm
Product type
Optical proximity sensor
Max. range
30.000 mm
Type
50122319
Content
1 pc(s)
Transmitter type
SC laser red
EAN:
Part number:
Item no:
Technical specifications
- Product type
Optical proximity sensor
- Type
50122319
- Content
1 pc(s)
- Transmitter type
SC laser red
- Beam diameter
6 mm
- Outputs
Analogue
- Resolution
1.0 mm
- Range (min.) (open area)
200 mm
30.000 mm
- Cable length
15.000 mm
- Manufacturer part #
50122319
- No. of pins
8
DC
Other
-10-45 °C
FALSE
Push button
0 mA ... 20 mA / 4 mA ... 20 mA
Cable
PNP/NPN
Anticoincidence
Safety class 2
Manual adjustment
ATEX gas-ex-protection, Cat. 2G
ATEX dust-ex-protection, Cat. 2D
Cuboid
Class 2
Laser diode, red light
Other
18-30 V
FALSE
Glass
Other
IP67
135 mm
143 mm
290 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2983066 Leuze Electronic 50122319 Optical proximity sensor 1 pc(s) Max. range (open field): 30.000 mm
Description
Scan system: Against object; special version: Ex-protected; light source: Laser, red; light spot size: 6 mm; Measuring range: 200 ... 30,000 mm; Geometric resolution: 1.0 mm; Supply voltage: 18 ... 30 V, DC; Digital switching inputs: 1 pieces; Analogue outputs: 2 pieces; Digital switching outputs: 1 pieces; Output: Current, voltage; Connection: Wire, 15,000 mm, 8-wire; dimensions: 135 mm x 143 mm x 290 mm; controls: membrane keypad, LCD display; Ex device category: 2G, 2D
