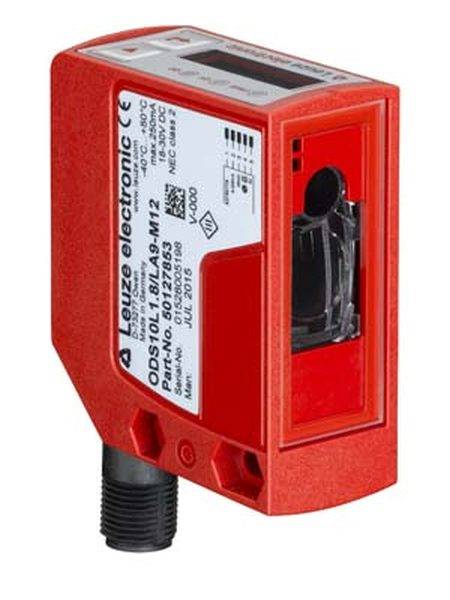

Leuze Electronic 50129528 Optical proximity sensor 1 pc(s) Max. range (open field): 8.000 mm
Product type
Optical proximity sensor
Max. range
8.000 mm
Type
50129528
Content
1 pc(s)
Outputs
Digital
EAN:
Part number:
Item no:
Technical specifications
- Product type
Optical proximity sensor
- Type
50129528
- Content
1 pc(s)
- Outputs
Digital
- Resolution
1.0 mm
- Range (min.) (open area)
50 mm
8.000 mm
- Thread type connection side
M12
- Manufacturer part #
50129528
- No. of pins
5
DC
Plastic
-40-50 °C
FALSE
Push button
Other
Connector M12
PNP/NPN
Anticoincidence
Safety class 3
Manual adjustment
None
None
Cuboid
Class 1
Laser diode, red light
Other
18-30 V
FALSE
Glass
Other
IP67
25 mm
65 mm
55 mm
Light-/dark switching
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2983060 Leuze Electronic 50129528 Optical proximity sensor 1 pc(s) Max. range (open field): 8.000 mm
Description
Touch system: Against object; light source: Laser, red; light spot size: 7 mm x 7 mm; measuring range: 50 ... 8,000 mm; Geometric resolution: 1.0 mm; Supply voltage: 18 ... 30 V, DC; Digital switching outputs: 2 pieces; Interface: IO-Link; Connection: Round plug, M12, 5-pin, Rotates 90°; Dimensions: 25 mm x 65 mm x 55 mm; Control elements: Control buttons, PC software
