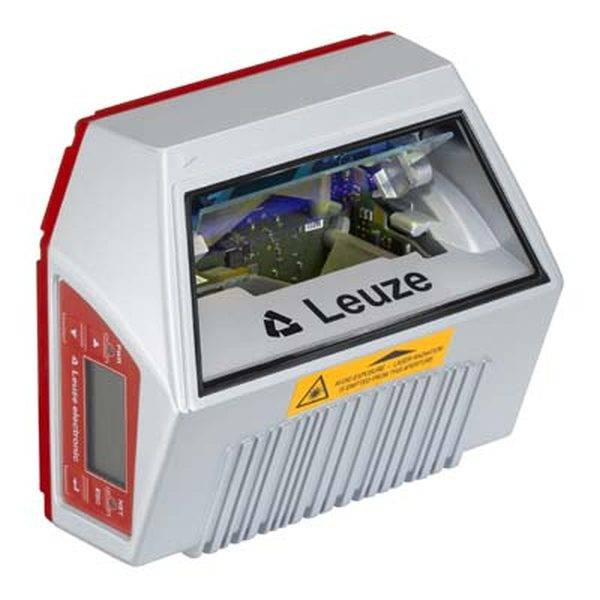

Leuze Electronic 50131498 Barcode reader 50131498 1 pc(s)
Product type
Barcode reader
Type
50131498
Content
1 pc(s)
Voltage type
DC
Suitable for safety functions
FALSE
EAN:
Part number:
Item no:
Technical specifications
- Product type
Barcode reader
- Type
50131498
- Content
1 pc(s)
DC
FALSE
-35-40 °C
10 Hz
Other
Other
10-30 V
Safety class 3
FALSE
Class 2
FALSE
FALSE
FALSE
405 nm
173 mm
84 mm
147 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2980639 Leuze Electronic 50131498 Barcode reader 50131498 1 pc(s)
Description
Special version: Heating; functions: Reference code comparison, AutoConfig, AutoControl, AutoRefAct, Code fragment technology, heating, adjustment mode, LED display; scan rate, typical: 800 scans/s; reading distance: 450 ... 1,450 mm; reading technology: Swivel mirror scanner; light beam outlet: Zero position at a lateral angle of 90°; supply voltage: 10 ... 30 V, DC; Selectable inputs/outputs: 4 pcs; Interface: PROFINET, USB; Connection: USB; Dimensions: 173 mm x 84 mm x 147 mm; Display: LED, monochrome graphic display 128x64 pixels, with background lighting; Control elements: Key(s), via service interface; Ambient temperature Operation: -35 ... 40 °C; approvals c UL us
