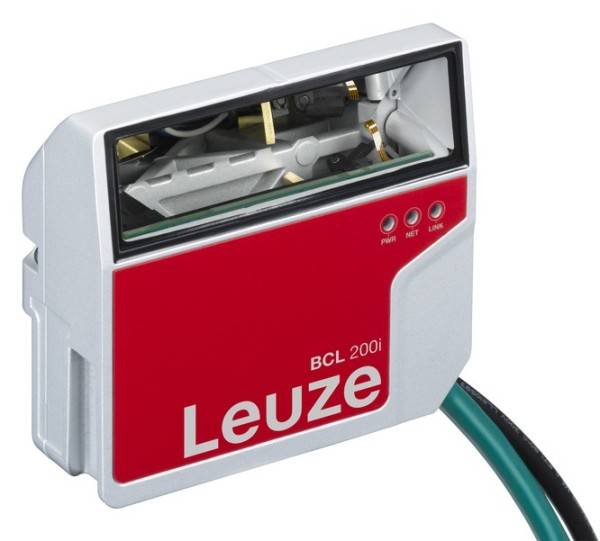

Leuze Electronic 50143214 Barcode reader 50143214 1 pc(s)
Product type
Barcode reader
Type
50143214
Content
1 pc(s)
Voltage type
DC
Suitable for safety functions
FALSE
EAN:
Part number:
Item no:
Technical specifications
- Product type
Barcode reader
- Type
50143214
- Content
1 pc(s)
DC
FALSE
0-40 °C
1
Other
Connector M12
18-30 V
Safety class 3
FALSE
Class 1
FALSE
FALSE
FALSE
655 nm
93 mm
38 mm
83 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2980645 Leuze Electronic 50143214 Barcode reader 50143214 1 pc(s)
Description
Functions: AutoRefAct, AutoConfig, AutoControl, Codefragment Technique, Adjustment Mode, LED display, reference code comparison; scan rate, typical: 1,000 scans/s; reading distance: 40 ... 255 mm; reading technology: Raster scanner with deflection mirror; light beam outlet: Lateral with deflection mirror; supply voltage: 18 ... 30 V, DC; Digital switching inputs: 1 pc; Digital switching outputs: 1 pc; Interface: Ethernet IP; Connection: Cable with circular plug; Dimensions: 93 mm x 38 mm x 83 mm; Display: LED; Ambient temperature operation: 0 ... 40 °C; approvals c UL us
