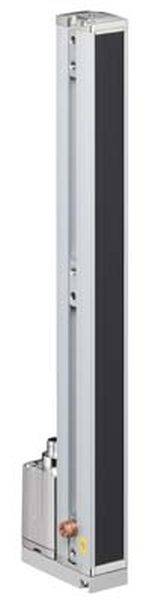

Leuze Electronic Light barrier 50119453 Range (max.) 3.5 m Protective field height 400 mm
Product type
Light barrier
Length
423 mm
Height
29 mm
Type
50119453
Response time
2.8 ms
EAN:
Part number:
Item no:
Technical specifications
- Product type
Light barrier
- Type
50119453
- Response time
2.8 ms
- Range (min.)
0.1 m
- Range (max.)
3.5 m
- Beam spacing
5 mm
- Protective field height
400 mm
- Content
1 pc(s)
- Length
423 mm
- Width
35.4 mm
- Height
29 mm
- Dim
(L x W x H) 423 x 35.4 x 29 mm
DC
FALSE
FALSE
-30-60 °C
FALSE
Other
Connector M12
18-30 V
Safety class 3
10 mm
None
None
Transmitter
FALSE
FALSE
FALSE
FALSE
FALSE
3.5 m
400 mm
TRUE
940 nm
IP65
5 mm
29 mm
35.4 mm
423 mm
Other
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2981937 Leuze Electronic Light barrier 50119453 Range (max.) 3.5 m Protective field height 400 mm
Description
Special version: Cross beam scanning, diagonal beam scanning, parallel beam scanning; operating range: 0.1 ... 3.5 m; measuring field length: 400 mm; beam distance: 5 mm; supply voltage: 18 ... 30 V, DC; cycle time: 2.8 ms; connection: Round plug, M12, rear, 5 -pin; dimensions: 29 mm x 35.4 mm x 423 mm
