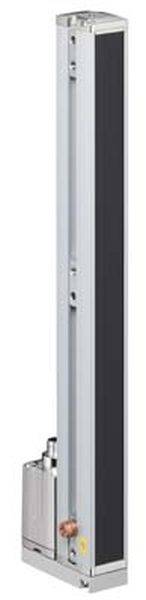

Leuze Electronic Light barrier 50119490 Range (max.) 7 m Protective field height 640 mm
Product type
Light barrier
Length
35.4 mm
Height
663 mm
Type
50119490
Range of uses
PPE
EAN:
Part number:
Item no:
Technical specifications
- Product type
Light barrier
- Type
50119490
- Range of uses
PPE
- Response time
2.32 ms
- Range (min.)
0.3 m
- Range (max.)
7 m
- Beam spacing
10 mm
- Protective field height
640 mm
- Total height
663 mm
- Content
1 pc(s)
- Length
35.4 mm
- Width
29 mm
- Height
663 mm
- Dim
(L x W x H) 35.4 x 29 x 663 mm
DC
FALSE
FALSE
-30-60 °C
FALSE
Other
Connector M12
18-30 V
Safety class 3
20 mm
None
None
Transmitter
FALSE
FALSE
FALSE
FALSE
FALSE
7 m
640 mm
TRUE
940 nm
IP65
10 mm
29 mm
35.4 mm
663 mm
Other
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2981925 Leuze Electronic Light barrier 50119490 Range (max.) 7 m Protective field height 640 mm
Description
Special version: Cross beam scanning, diagonal beam scanning, parallel beam scanning; operating range: 0.3 ... 7 m; measuring field length: 640 mm; beam distance: 10 mm; supply voltage: 18 ... 30 V, DC; cycle time: 2.32 ms; connection: Round plug, M12, rear, 5 -pin; dimensions: 29 mm x 35.4 mm x 663 mm
