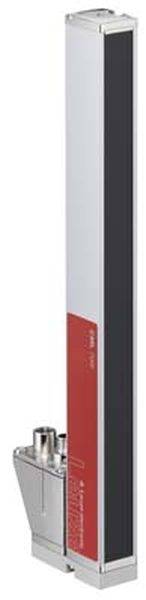

Leuze Electronic Light barrier 50120126 Range (max.) 3.5 m Protective field height 400 mm
Product type
Light barrier
Length
29 mm
Type
50120126
Response time
30 µs
Range (min.)
0.1 m
EAN:
Part number:
Item no:
Technical specifications
- Product type
Light barrier
- Type
50120126
- Response time
30 µs
- Range (min.)
0.1 m
- Range (max.)
3.5 m
- Outputs
Analogue
- Beam spacing
5 mm
- Protective field height
400 mm
- Total height
423 mm
- Content
1 pc(s)
- Length
29 mm
- Width
35.4 mm
- Dim
(L x W) 29 mm x 35.4 mm
DC
FALSE
FALSE
-30-60 °C
2
FALSE
Other
Connector M12
18-30 V
Safety class 3
10 mm
None
None
Receiver
FALSE
FALSE
FALSE
FALSE
0.03 ms
FALSE
3.5 m
400 mm
TRUE
IP65
5 mm
29 mm
35.4 mm
423 mm
Other
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2981705 Leuze Electronic Light barrier 50120126 Range (max.) 3.5 m Protective field height 400 mm
