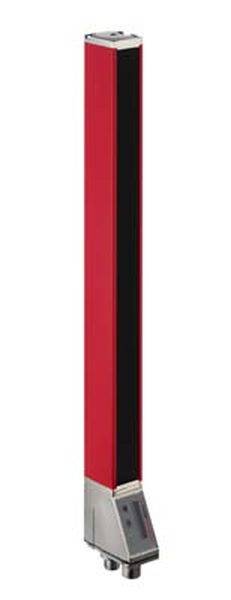

Leuze Electronic Light barrier 50128929 Range (max.) 7 m Protective field height 160 mm
Product type
Light barrier
Length
29 mm
Height
233 mm
Type
50128929
Response time
30 µs
EAN:
Part number:
Item no:
Technical specifications
- Product type
Light barrier
- Type
50128929
- Response time
30 µs
- Range (min.)
0.3 m
- Range (max.)
7 m
- Beam spacing
10 mm
- Protective field height
160 mm
- Total height
233 mm
- Content
1 pc(s)
- Length
29 mm
- Width
54.8 mm
- Height
233 mm
- Dim
(L x W x H) 29 x 54.8 x 233 mm
DC
FALSE
FALSE
-30-60 °C
FALSE
Other
Connector M12
18-30 V
Safety class 3
20 mm
None
None
Receiver
FALSE
FALSE
FALSE
FALSE
0.03 ms
FALSE
7 m
160 mm
TRUE
IP65
10 mm
29 mm
54.8 mm
233 mm
Other
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2981984 Leuze Electronic Light barrier 50128929 Range (max.) 7 m Protective field height 160 mm
Description
Application: Precise object detection; special version: Parallel beam scanning, diagonal beam scanning, cross beam scanning; operating range: 0.3 ... 7 m; measuring field length: 160 mm; beam distance: 10 mm; supply voltage: DC; selectable inputs/outputs: 4 pcs; response time per beam: 30 µs; service interface: IO-Link; connection: Round connector, M12, 8-pin; Dimensions 29 x 54.8 x 233 mm
