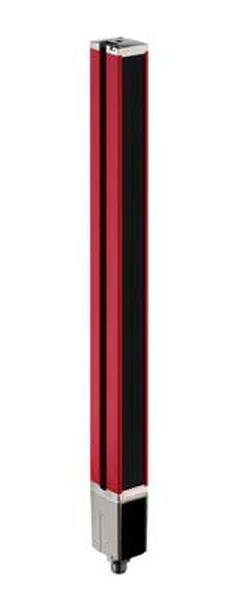

Leuze Electronic Light barrier 50128977 Range (max.) 3.5 m Protective field height 160 mm
Product type
Light barrier
Length
35.4 mm
Height
233 mm
Type
50128977
Range (min.)
0.1 m
EAN:
Part number:
Item no:
Technical specifications
- Product type
Light barrier
- Type
50128977
- Range (min.)
0.1 m
- Range (max.)
3.5 m
- Beam spacing
5 mm
- Protective field height
160 mm
- Total height
233 mm
- Content
1 pc(s)
- Length
35.4 mm
- Width
29 mm
- Height
233 mm
- Dim
(L x W x H) 35.4 x 29 x 233 mm
DC
FALSE
FALSE
-30-60 °C
FALSE
Other
Connector M12
18-30 V
Safety class 3
10 mm
None
None
Transmitter
FALSE
FALSE
FALSE
FALSE
FALSE
3.5 m
160 mm
TRUE
940 nm
IP65
5 mm
29 mm
35.4 mm
233 mm
Other
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2981920 Leuze Electronic Light barrier 50128977 Range (max.) 3.5 m Protective field height 160 mm
Description
Application: Precise object detection; special version: Parallel beam scanning, diagonal beam scanning, cross beam scanning; operating range: 0.1 ... 3.5 m; measuring field length: 160 mm; beam distance: 5 mm; supply voltage: DC; connection: Round plug, M12, 5-pin; dimensions 29 mm x 35.4 mm x 233 mm
