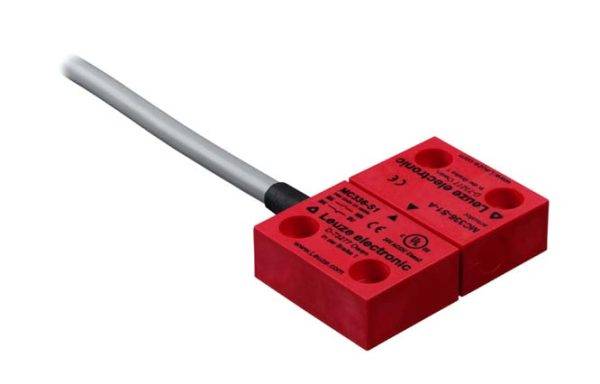

Leuze Electronic Magnetic sensor Leuze 63001057
Product type
Magnetic sensor
Model
Magnetic
Type
Leuze
Enclosure material
Plastic (fibreglass reinforced)
Cable length
200 mm
EAN:
Part number:
Item no:
Technical specifications
- Product type
Magnetic sensor
- Type
Leuze
- Enclosure material
Plastic (fibreglass reinforced)
- Model
Magnetic
- Cable length
200 mm
- Content
1 pc(s)
- Technology
Magnetic
AC/DC
Plastic
TRUE
Uncoated
FALSE
-20-70 °C
8 mm
Connector M12
None
None
Cuboid
11 mm
3 mm
500 mA
Not flat
500 mA
FALSE
FALSE
IP67
Magnet
26.2 mm
13 mm
36 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2983166 Leuze Electronic Magnetic sensor Leuze 63001057
Description
Contact configuration: 1NC + 1NO; connection: Line with circular plug, M12, metal, 4-pin, 200 mm, PVC; dimension: 26.2 mm x 13 mm x 36 mm; material housing: plastic, glass-fiber reinforced (PPS), self-extinguishing; actuator, EXTERN: magnetic coded; OFF (OFF), min.: 8 mm; Safe Off Distance (Sar), min.: 11 mm; Safe switch-on distance (Sao), max.: 3 mm; Protection class: IP 67; Approvals: c UL US, TÜV SÜD (with suitable safety switching device)
