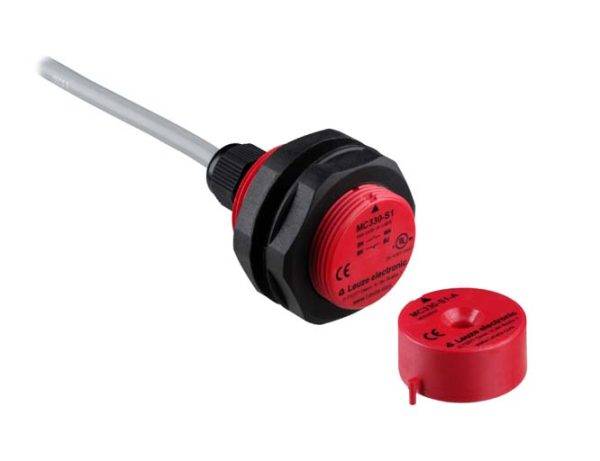

Leuze Electronic Magnetic sensor Leuze 63001100 Cable Antivalent
Product type
Magnetic sensor
Contact type
Antivalent
Model
Magnetic
Connector
Cable
Length
36 mm
EAN:
Part number:
Item no:
Technical specifications
- Product type
Magnetic sensor
- Type
Leuze
- Contact type
Antivalent
- Enclosure material
Plastic
- Model
Magnetic
- Connector
Cable
- Cable length
2.000 mm
- Features
LED indicator
- Min. temperature
-20 °C
- Max. temperature
70 °C
- Length
36 mm
- (Ø)
30 mm
- Dim
(Ø x L) 30 mm x 36 mm
- Content
1 pc(s)
- Technology
Magnetic
- Output signal (max.)
500 mA
- Output signal (min.)
500 mA
AC/DC
Plastic
TRUE
Uncoated
FALSE
-20-70 °C
12 mm
Cable
None
None
Cylinder, screw-thread
14 mm
6 mm
500 mA
Not flat
500 mA
FALSE
FALSE
IP67
Magnet
36 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2983161 Leuze Electronic Magnetic sensor Leuze 63001100 Cable Antivalent
Description
Contact configuration: 1NC + 1NO, connection: Line with wire end sleeves, 4 -wire, 2,000 mm, PVC; dimensions: M30 Dimensions: 36 mm; material housing: plastic, glass-fiber reinforced (PPS), self-extinguishing; actuator, EXTERN: magnetic coded; OFF (OFF), min.: 12 mm; Safe Off Distance (Sar), min.: 14 mm; Safe switch-on distance (Sao), max.: 6 mm; Protection class: IP 67; Approvals: c UL US, TÜV SÜD (with suitable safety switching device)
