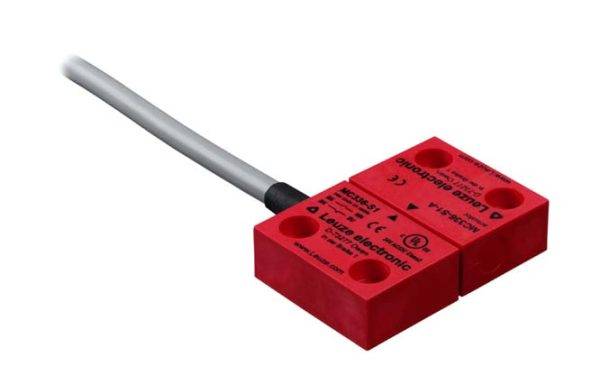

Image similar
Leuze Electronic Magnetic sensor Magnetic 63001077 63001077 2x PNP
Product type
Magnetic sensor
Contact type
2 makers
Outputs
2x PNP
Model
Magnetic
Type
63001077
EAN:
Part number:
Item no:
Technical specifications
- Product type
Magnetic sensor
- Type
63001077
- Contact type
2 makers
- Outputs
2x PNP
- Enclosure material
Plastic (fibreglass reinforced)
- Model
Magnetic
- Cable length
200 mm
- Content
1 pc(s)
- Technology
Magnetic
AC/DC
Plastic
TRUE
Uncoated
FALSE
-20-70 °C
17 mm
Connector M12
None
None
Cuboid
20 mm
7 mm
100 mA
Not flat
100 mA
FALSE
FALSE
IP67
Magnet
26.2 mm
13 mm
36 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2983162 Leuze Electronic Magnetic sensor Magnetic 63001077 63001077 2x PNP
Description
Contact configuration: 2NO; connection: Cable with circular plug, M12, metal, 4-pin, 200 mm, PVC; dimension: 26.2 mm x 13 mm x 36 mm; material housing: plastic, glass-fiber reinforced (PPS), self-extinguishing; actuator, EXTERN: magnetic coded; OFF (OFF), min.: 17 mm; Safe Off Distance (Sar), min.: 20 mm; Safe switch-on distance (Sao), max.: 7 mm; Protection class: IP 67; Approvals: c UL US, TÜV SÜD (with suitable safety switching device)
