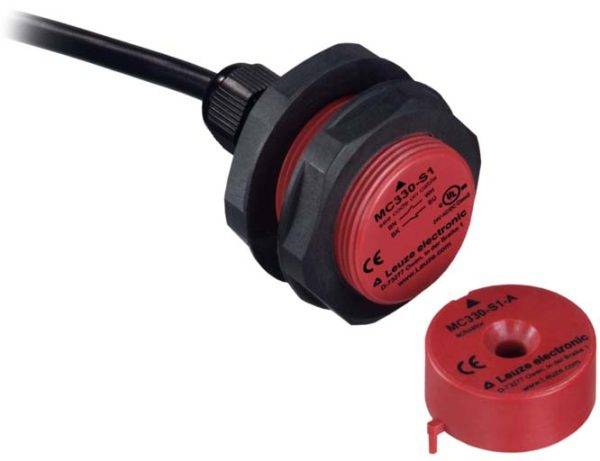

Leuze Electronic Magnetic sensor Magnetic 63001103 63001103
Product type
Magnetic sensor
Contact type
1 change-over
Model
Magnetic
Length
36 mm
Type
63001103
EAN:
Part number:
Item no:
Technical specifications
- Product type
Magnetic sensor
- Type
63001103
- Contact type
1 change-over
- Enclosure material
Plastic (fibreglass reinforced)
- Model
Magnetic
- Cable length
2.000 mm
- Min. temperature
-20 °C
- Max. temperature
70 °C
- Length
36 mm
- Content
1 pc(s)
- Technology
Magnetic
AC/DC
Plastic
TRUE
Uncoated
FALSE
-20-70 °C
12 mm
Cable
None
None
Cylinder, screw-thread
14 mm
6 mm
500 mA
Not flat
500 mA
FALSE
FALSE
IP67
Magnet
36 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2983158 Leuze Electronic Magnetic sensor Magnetic 63001103 63001103
Description
Contact configuration: 1NC + 1NO; connection: Line with wire end sleeves, 4 -wire, 2,000 mm, PUR; dimensions: M30; Dimensions: 36 mm; material housing: plastic, glass-fiber reinforced (PPS), self-extinguishing; actuator, EXTERN: magnetic coded; OFF (OFF), min.: 12 mm; Safe Off Distance (Sar), min.: 14 mm; Safe switch-on distance (Sao), max.: 6 mm; Protection class: IP 67; Approvals: c UL US, TÜV SÜD (with suitable safety switching device)
