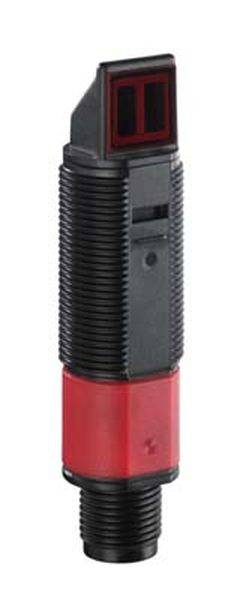

Leuze Electronic Photo sensor 50122558 50122558 Light-ON 1 pc(s)
Product type
Photo sensor
Functions
Light-ON
Type
50122558
Response time
1 ms
Contact type
1 PNP
EAN:
Part number:
Item no:
Technical specifications
- Product type
Photo sensor
- Type
50122558
- Functions
Light-ON
- Response time
1 ms
- Contact type
1 PNP
- Outputs
2x PNP Antivalent
- Switching frequency
500 Hz
- Size
M18
- Enclosure material
Plastic
- Transmitter type
LED red
- Light emission
90 degree angled
- Wavelength
620 nm
0.45 m
- Min. temperature
-40 °C
- Max. temperature
60 °C
- Length
60.4 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 60.4 mm
- Content
1 pc(s)
DC
100 mA
Plastic
FALSE
-40-60 °C
FALSE
500 Hz
2
Radial plug
PNP
Other
10-30 V
Safety class 3
Teach-In
None
None
Polarity free red light
FALSE
FALSE
1 ms
FALSE
620 nm
Plastic
Other
IP67
FALSE
FALSE
FALSE
FALSE
18 mm
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
60.4 mm
FALSE
FALSE
Light switching
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2981517 Leuze Electronic Photo sensor 50122558 50122558 Light-ON 1 pc(s)
Description
Special version: 90° - angle optics; limit range, white 90%: 0.001 ... 0.45 m; light source: LED, red; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, PNP, light-switching; switching output 2: Transistor, PNP, dark switching; switching frequency: 500 Hz; connection: round plug, M12, Plastic, 4-pin; design: cylindrical housing; thread size: M18; dimensions: 18 mm x 60.4 mm; material housing: plastic; operating elements: teach-button; ambient temperature operation: -40 ... 60 °C; protection class IP 67
This text is machine translated.
This text is machine translated.
Hints
For more information on this 50122558, please refer to its datasheet under 'downloadable documents'
