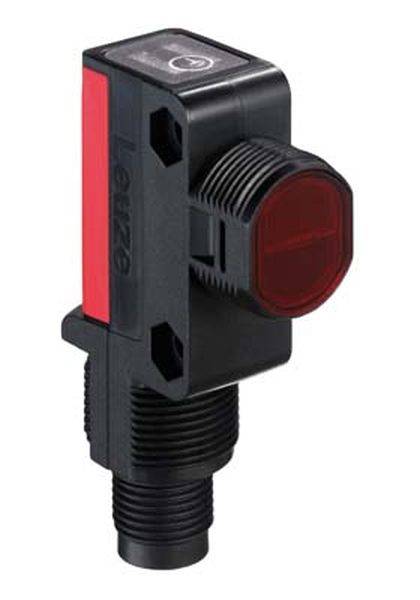

Leuze Electronic Photo sensor 50122590 50122590 Light-ON 1 pc(s)
Product type
Photo sensor
Functions
Light-ON
Type
50122590
Response time
1 ms
Contact type
1 PNP
EAN:
Part number:
Item no:
Technical specifications
- Product type
Photo sensor
- Type
50122590
- Functions
Light-ON
- Response time
1 ms
- Contact type
1 PNP
- Outputs
2x PNP
- Switching frequency
500 Hz
- Size
M18
- Enclosure material
Plastic
- Transmitter type
Red light, unpolarised
- Wavelength
620 nm
0.25 m
- Features
LED indicator
- Min. temperature
-40 °C
- Max. temperature
60 °C
- Length
31.8 mm
- Width
15 mm
- Height
46.5 mm
- Depth
31.8 mm
- Dim
(L x W x H) 31.8 x 15 x 46.5 mm
- Content
1 pc(s)
DC
100 mA
Plastic
FALSE
-40-60 °C
FALSE
500 Hz
2
Radial plug
PNP
Other
10-30 V
Safety class 3
Teach-In
None
None
Cuboid
Polarity free red light
FALSE
FALSE
1 ms
FALSE
620 nm
Plastic
Other
IP67
FALSE
FALSE
FALSE
FALSE
15 mm
46.5 mm
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
31.8 mm
FALSE
FALSE
Light switching
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2981488 Leuze Electronic Photo sensor 50122590 50122590 Light-ON 1 pc(s)
Description
Border range, white 90%: 0 ... 0.25 m; light source: LED, red; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, PNP, light-switching; switching output 2: Transistor, PNP, dark switching; switching frequency: 500 Hz; connection: round plug, M12, Plastic, 4-pin; design: cubic; dimensions: 15 mm x 46.5 mm x 31.8 mm; thread size: M18; material housing: plastic; operating elements: teach-button; ambient temperature operation: -40 ... 60 °C; protection class IP 67
This text is machine translated.
This text is machine translated.
Hints
For more information on this 50122590, please refer to its datasheet under 'downloadable documents'
