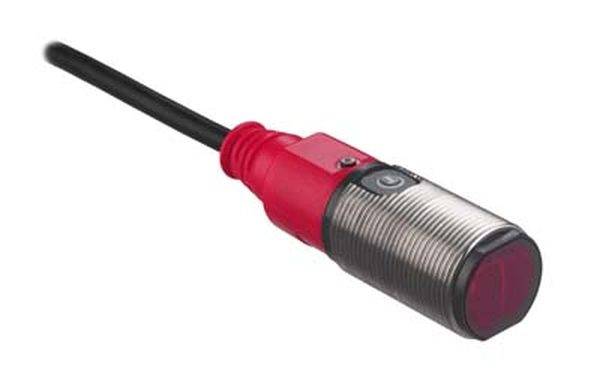

Leuze Electronic Photo sensor 50122718 50122718 Light-ON 1 pc(s)
Packaging type
Piece
Product type
Photo sensor
Functions
Light-ON
Type
50122718
Response time
1 ms
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Photo sensor
- Type
50122718
- Functions
Light-ON
- Response time
1 ms
- Outputs
PNP
- Switching frequency
500 Hz
- Cable length
2.000 mm
- Size
M18
- Enclosure material
Metal
- Transmitter type
Red light, unpolarised
- Wavelength
620 nm
0.28 m
- Min. temperature
-40 °C
- Max. temperature
60 °C
- Length
46 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 46 mm
- Content
1 pc(s)
DC
100 mA
Metal
FALSE
-40-60 °C
FALSE
500 Hz
2
Radial plug
PNP
Other
10-30 V
Safety class 3
Teach-In
None
None
Polarity free red light
FALSE
FALSE
1 ms
FALSE
620 nm
Plastic
Polyurethane (PUR)
IP67
FALSE
FALSE
FALSE
FALSE
18 mm
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
46 mm
FALSE
FALSE
Light switching
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2981482 Leuze Electronic Photo sensor 50122718 50122718 Light-ON 1 pc(s)
Description
Border range, white 90%: 0.001 ... 0.28 m; light source: LED, red; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, PNP, light-switching; switching output 2: Transistor, PNP, dark switching; switching frequency: 500 Hz; connection: line, 2,000 mm, 4-wire; design housing: cylindrical; thread size: M18; dimensions: 18 mm x 46 mm; material housing: stainless steel, plastic; operating elements: teach-button; ambient temperature operation: -40 ... 60 °C; protection class IP 67
This text is machine translated.
This text is machine translated.
Hints
For more information on this 50122718, please refer to its datasheet under 'downloadable documents'
