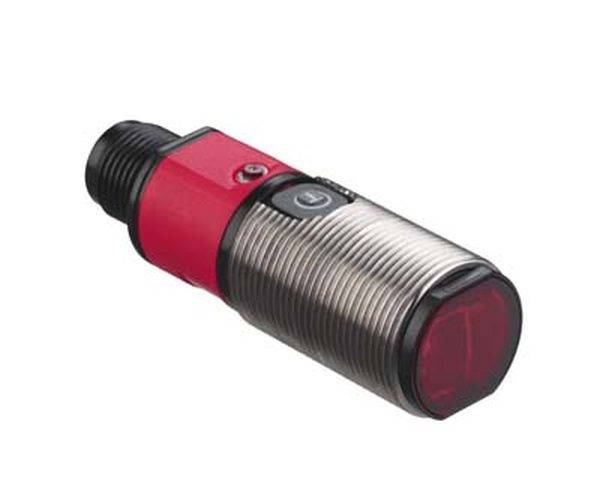

Leuze Electronic Photo sensor 50122728 50122728 Light-ON, Dark-ON, Teach-in 1 pc(s)
Product type
Photo sensor
Functions
Light-ON
Dark-ON
Teach-in
Type
50122728
Response time
1 ms
Outputs
NPN
EAN:
Part number:
Item no:
Technical specifications
- Product type
Photo sensor
- Type
50122728
- Functions
Light-ON
Dark-ON
Teach-in
- Response time
1 ms
- Outputs
NPN
- Switching frequency
500 Hz
- Size
M18
- Enclosure material
Plastic
Stainless steel
- Transmitter type
Red light, unpolarised
- Wavelength
620 nm
1 m
- Min. temperature
-40 °C
- Max. temperature
60 °C
- Length
46 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 46 mm
- Content
1 pc(s)
DC
100 mA
Metal
FALSE
-40-60 °C
FALSE
500 Hz
2
Radial plug
NPN
Other
10-30 V
Safety class 3
Teach-In
None
None
Polarity free red light
FALSE
FALSE
1 ms
FALSE
620 nm
Plastic
Other
IP67
FALSE
FALSE
FALSE
FALSE
18 mm
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
46 mm
FALSE
FALSE
Light switching
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2981477 Leuze Electronic Photo sensor 50122728 50122728 Light-ON, Dark-ON, Teach-in 1 pc(s)
Description
Border range, white 90%: 0.001 ... 1 m; light source: LED, red; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, NPN, light-switching; switching output 2: Transistor, NPN, dark switching; switching frequency: 500 Hz; connection: round plug, M12, Plastic, 4-pin; design housing: cylindrical; thread size: M18; dimensions: 18 mm x 46 mm; material housing: stainless steel, plastic; operating elements: teach-button; ambient temperature operation: -40 ... 60 °C; protection class IP 67
This text is machine translated.
This text is machine translated.
Hints
For more information on this 50122728, please refer to its datasheet under 'downloadable documents'
