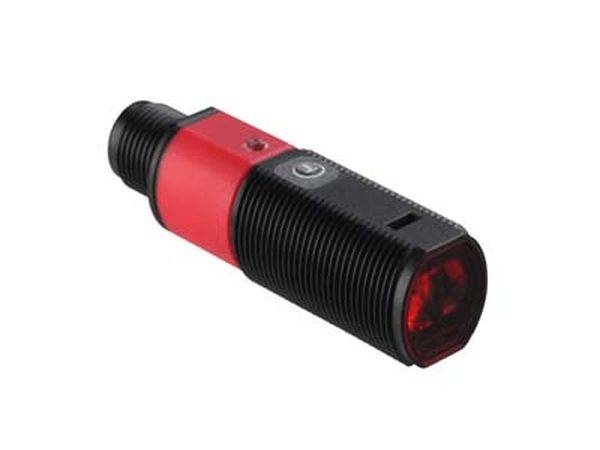

Leuze Electronic Photo sensor 50126607 50126607 Teach-in 1 pc(s)
Product type
Photo sensor
Functions
Teach-in
Connector
Cable
Type
50126607
Response time
1 ms
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Photo sensor
- Type
50126607
- Functions
Teach-in
- Response time
1 ms
- Outputs
PNP
- Switching frequency
500 Hz
- Connector
Cable
- Cable length
2.000 mm
- Size
M18
- Enclosure material
Plastic
- Transmitter type
LED IR
- Wavelength
850 nm
1 m
- Min. temperature
-40 °C
- Max. temperature
60 °C
- Length
46 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 46 mm
- Content
1 pc(s)
DC
100 mA
Plastic
FALSE
-40-60 °C
FALSE
500 Hz
2
Radial plug
PNP
Other
10-30 V
Safety class 3
Teach-In
None
None
Infrared light
FALSE
FALSE
1 ms
FALSE
850 nm
Plastic
Polyurethane (PUR)
IP67
FALSE
FALSE
FALSE
FALSE
18 mm
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
46 mm
FALSE
FALSE
Light switching
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2981475 Leuze Electronic Photo sensor 50126607 50126607 Teach-in 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2981475 Leuze Electronic Photo sensor 50126607 50126607 Teach-in 1 pc(s)
User & Safety Instructions 2981475 Leuze Electronic Photo sensor 50126607 50126607 Teach-in 1 pc(s)
Description
Border range, white 90%: 0.001 ... 1 m; light source: LED, infrared; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, PNP, light-switching; switching output 2: Transistor, PNP, dark switching; switching frequency: 500 Hz; connection: line, 2,000 mm, 4-wire; design housing: cylindrical; thread size: M18; dimensions: 18 mm x 46 mm; material housing: plastic; operating elements: teach-button; ambient temperature operation: -40 ... 60 °C; protection class IP 67
This text is machine translated.
This text is machine translated.
Hints
For more information on this 50126607, please refer to its datasheet under 'downloadable documents'
