Leuze Electronic Photo sensor 50127773 50127773 Light-ON 1 pc(s)
Product type
Photo sensor
Functions
Light-ON
Type
50127773
Response time
1 ms
Outputs
2x PNP
EAN:
Part number:
Item no:
Technical specifications
- Product type
Photo sensor
- Type
50127773
- Functions
Light-ON
- Response time
1 ms
- Outputs
2x PNP
- Switching frequency
500 Hz
- Size
M18
- Enclosure material
Non-corrosive steel
- Material properties
rust-proof
- Transmitter type
LED IR
- Wavelength
850 nm
0.12 m
- Features
LED indicator
- Min. temperature
-40 °C
- Max. temperature
60 °C
- Length
46 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 46 mm
- Content
1 pc(s)
DC
Metal
FALSE
-40-60 °C
FALSE
500 Hz
2
Radial plug
PNP
Other
10-30 V
Safety class 3
Teach-In
None
None
Infrared light
FALSE
FALSE
1 ms
FALSE
850 nm
Plastic
Other
IP67
FALSE
FALSE
FALSE
FALSE
18 mm
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
46 mm
FALSE
FALSE
Light switching
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2981474 Leuze Electronic Photo sensor 50127773 50127773 Light-ON 1 pc(s)
Description

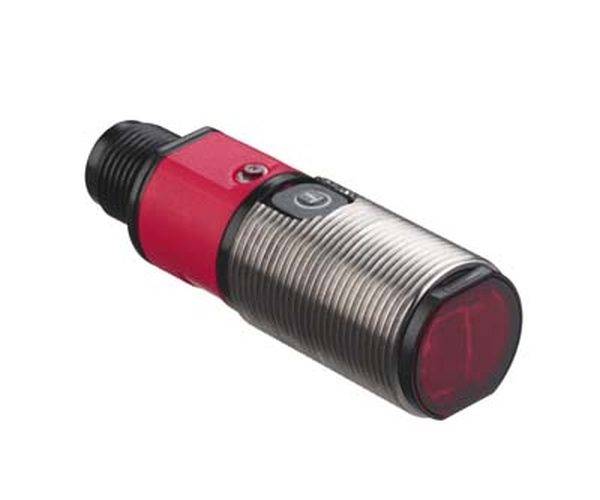

Application: Detection of labels on bottles; boundary range, white 90%: 0.08 ... 0.12 m; light source: LED, infrared; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, PNP, light-switching; switching output 2: Transistor, PNP, dark switching; switching frequency: 500 Hz; connection: round plug, M12, Plastic, 4-pin; design housing: cylindrical; thread size: M18; dimensions: 18 mm x 46 mm; material housing: stainless steel, plastic; operating elements: teach-button; ambient temperature operation: -40 ... 60 °C; protection class IP 67
This text is machine translated.
This text is machine translated.
Hints
For more information on this 50127773, please refer to its datasheet under 'downloadable documents'
